Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10273863 Rack-oven Appelez-nous -
2 W10206587 Assy., Convect Fan Special Order $ 225.11

3 WPW10184147 Element, Broil   (Replaces: W10184147) Special Order $ 171.96

4 WP7406P322-60 Element, Bake   (Replaces: 7406P322-60) In-Stock Immediately $ 173.66

5 3807F678-45 Retainer, Element Bake Appelez-nous -
6 3807F754-45 Support, Broil Element Special Order $ 8.34

7 3801F823-51 Bracket, Support (hidden Bake) Appelez-nous -
8 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

9 W10273862 Rack, Half Special Order $ 56.22

10 WP74008369 Sensor   (Replaces: 7430P043-60) In-Stock Immediately $ 119.65

11 7801P162-60 Rack, Offset Appelez-nous -
12 3605F336-19 Cover, Convect Appelez-nous -
13 7103P177-60 Nut Appelez-nous -
14 7408P088-60 Receptacle, Meat Probe Special Order $ 75.57

15 WP7430P038-60 Probe, Meat   (Replaces: 7430P038-60) Special Order $ 129.30

16 W10275560 Rack, Oven Half Special Order $ 69.52


    View Diagram in Separate Window     Print Icon   Print Part List

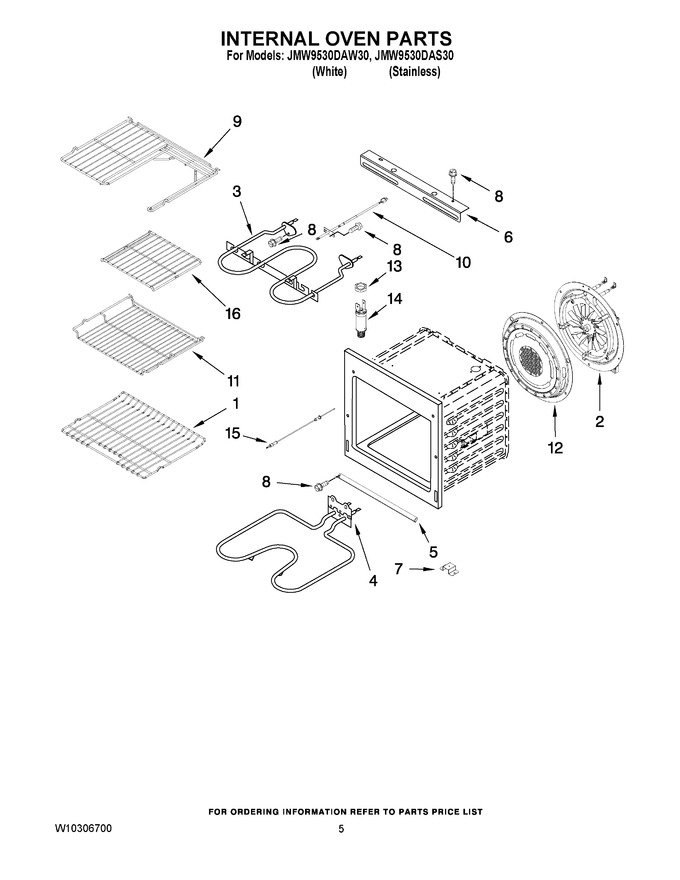

Diagram for JMW9530DAS30
