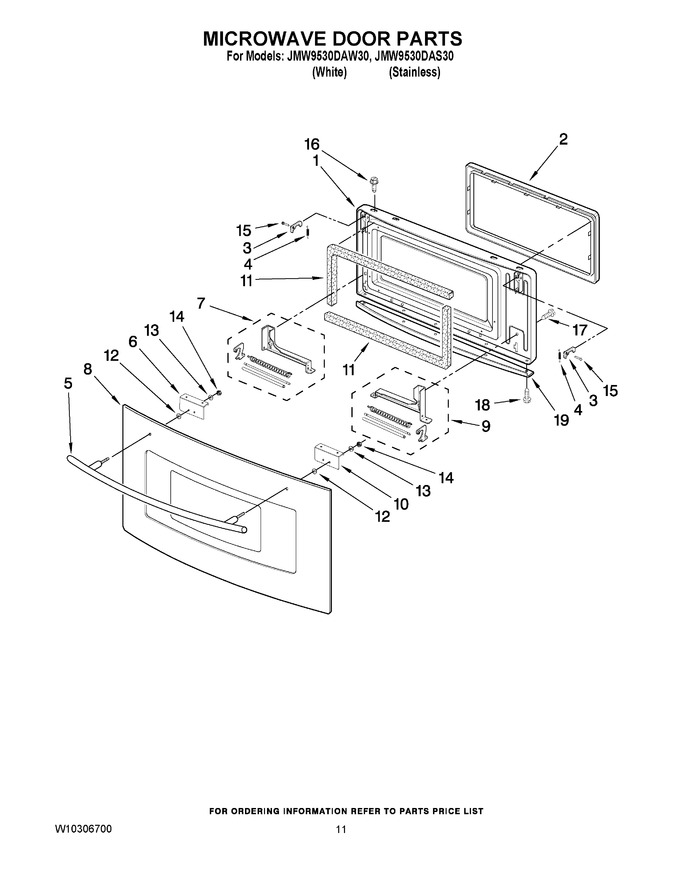

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53001287 | Frame, Door |
|
$ 153.01 | |||||
| 2 | 53001219 | Cover, Choke |
|
- | |||||
| 3 | 53001220 | Latch |
|
- | |||||
| 4 | 53001221 | Spring |
|
- | |||||
| 5 | 53001222 | Handle, Door |
|
- | |||||
| 6 | 53001224 | Bracket, Lh |
|
- | |||||
| 7 | 53001226 | Hinge, Lh |
|
$ 46.88 | |||||
| 8 | 53001229 | Glass, Door (white) |
|
- | |||||
| 8 | 53001239 | Glass, Door (stainless) |
|
- | |||||
| 9 | 53001236 | Hinge, Rh |
|
- | |||||
| 10 | 53001238 | Bracket, Rh |
|
- | |||||
| 11 | 53001280 | Cushion, Door |
|
- | |||||
| 12 | 53001286 | Washer |
|
- | |||||
| 13 | 53001282 | Washer, Sprg Lck |
|
$ 7.43 | |||||
| 14 | 53001283 | Nut |
|
$ 7.43 | |||||
| 15 | 53001281 | Pin, Latch |
|
- | |||||
| 16 | 53001284 | Screw |
|
- | |||||
| 17 | 53001285 | Screw |
|
- | |||||
| 18 | R9800309 | Screw, Tap |
|
- | |||||
| 19 | 53001234 | Trim, Door Btm |
|
- |
