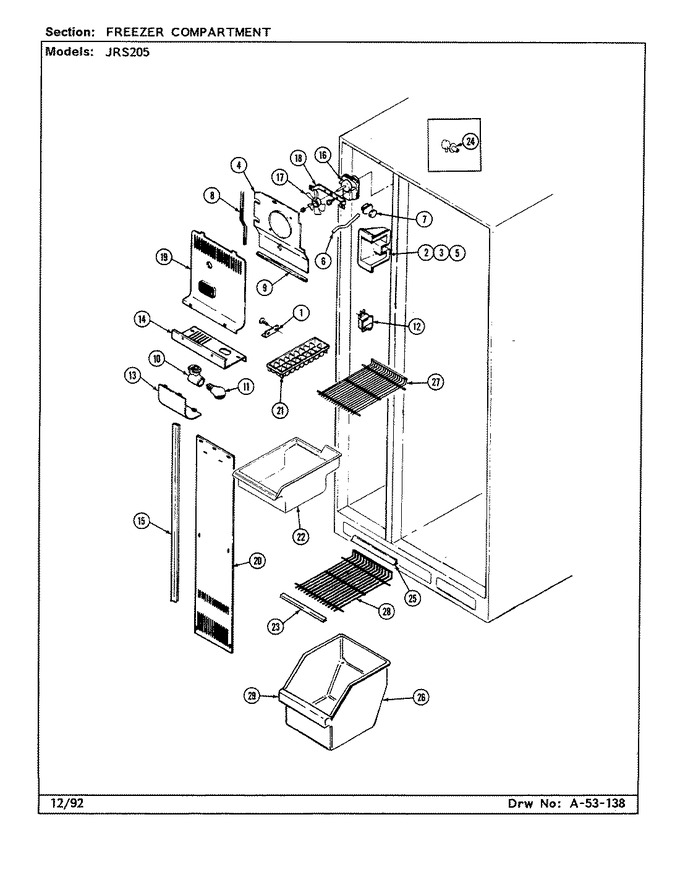

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67288-1 | Bracket, Mounting | 10 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 3 | 52077-10 | Seal | 10 |
|
- | ||||
| 4 | 400015-12 | Screw | 10 |
|
- | ||||
| 4 | 67297-5 | Cover, Coil (upper) | 10 |
|
- | ||||
| 5 | 59920-1 | Stud, Mounting Coil Cover | 10 |
|
- | ||||
| 6 | 67676-1 | Tube, Fill | 10 |
|
- | ||||
| 7 | 68187-1 | Cap, Connector | 10 |
|
- | ||||
| 8 | 68946-4 | Seal | 10 |
|
- | ||||
| 9 | 66325-21 | Seal (44``) | 10 |
|
- | ||||
| 10 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 68123-1) | 10 |
|
Immediately | $ 10.17 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 14 | 67344-3 | Support, Light Shield | 10 |
|
- | ||||
| 15 | 69314-1 | Seal Cover (side) | 10 |
|
- | ||||
| 16 | WP61004888 | Motor, Fan Evaporator (Replaces: 69298-1) | 10 |
|
Immediately | $ 104.99 | |||
| 17 | 52120-4 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 18 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 67225-1 | Shield, Fan | 10 |
|
- | ||||
| 20 | 67335-2 | Cover, Coil Lower | 10 |
|
- | ||||
| 21 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 22 | WP67001255 | Pan, Ice (Replaces: 68346-1) | 10 |
|
$ 182.77 | ||||
| 23 | 67176-1 | Trim, Frz. Shelf Front | 10 |
|
- | ||||
| 24 | 69219-1 | Grommet | 10 |
|
- | ||||
| 25 | 67177-8 | Trim, Shelf Rear | 10 |
|
- | ||||
| 26 | 66637-45 | Drawer, Frz. | 10 |
|
- | ||||
| 27 | 66603-37 | Shelf, 1 | 10 |
|
- | ||||
| 28 | 66603-42 | Shelf, 2,3, & 4 | 10 |
|
- | ||||
| 29 | 68124-64 | Insert, Pan | 10 |
|
- |
