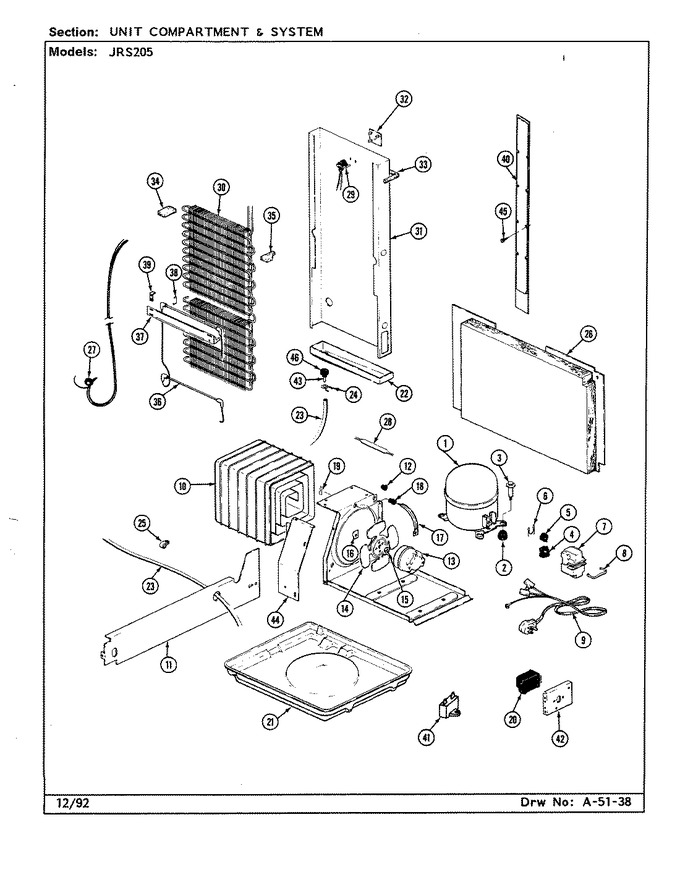

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12000038 | Kit, Compressor | 10 |
|
- | ||||
| 2 | 17245-4 | Grommet, Compressor | 10 |
|
- | ||||
| 3 | 65275-9 | Screw, Compressor Mounting | 10 |
|
- | ||||
| 4 | 66588-5 | Relay, Start | 10 |
|
- | ||||
| 5 | 69105-8 | Overload | 10 |
|
- | ||||
| 6 | 65887-1 | Clip, Overload | 10 |
|
- | ||||
| 7 | 66589-2 | Cover, Terminal | 10 |
|
- | ||||
| 8 | 65886-1 | Clip, Terminal Cover | 10 |
|
- | ||||
| 9 | 52890-2 | Cord, Power | 10 |
|
- | ||||
| 10 | 400062-1 | Screw | 10 |
|
- | ||||
| 10 | RA43644-1 | Condenser | 10 |
|
- | ||||
| 10 | 60408-2 | U-nut, Condenser | 10 |
|
- | ||||
| 11 | WP488729 | Screw (Replaces: 9986-45) | 10 |
|
Immediately | $ 7.01 | |||
| 11 | 66494-1 | Baffle, Air Divider | 10 |
|
- | ||||
| 12 | 53351-1 | Grommet, Condenser Tubing | 10 |
|
- | ||||
| 13 | 53351-1 | Grommet, Condenser Tubing | 10 |
|
- | ||||
| 13 | 833697 | Motor, Condenser Fan (Replaces: 67560-10) | 10 |
|
Immediately | $ 79.34 | |||
| 13 | 65275-33 | Screw | 10 |
|
- | ||||
| 14 | WP12587601 | Blade, Condenser Fan (Replaces: 69958-2) | 10 |
|
$ 114.00 | ||||
| 15 | 19913-2 | Washer, Fan Blade | 10 |
|
- | ||||
| 16 | WP486692 | Clip (Replaces: 19914-0) | 10 |
|
$ 7.04 | ||||
| 17 | 56936-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 18 | 56933-1 | Grommet, Bracket | 10 |
|
- | ||||
| 19 | 57051-1 | Clip, Motor Bracket | 10 |
|
- | ||||
| 20 | 405007-1 | Screw | 10 |
|
- | ||||
| 20 | WP68233-3 | Timer, Defrost (Replaces: 69543-6) | 10 |
|
Immediately | $ 139.32 | |||
| 21 | 68236-1 | Pan, Drain | 10 |
|
$ 89.75 | ||||
| 21 | 45004-20 | Cushion Padding, Drain Pan | 10 |
|
- | ||||
| 22 | 53523-1 | Trough, Drain | 10 |
|
- | ||||
| 22 | 440015-300 | Rivet | 10 |
|
- | ||||
| 23 | 26911-18 | Hose, Drain | 10 |
|
- | ||||
| 24 | WP596669 | Clamp, Drain Hose (Replaces: 9602-3) | 10 |
|
Immediately | $ 7.56 | |||
| 25 | 53516-5 | Clamp, Drain Hose | 10 |
|
- | ||||
| 26 | 66339-3 | Cover | 10 |
|
- | ||||
| 26 | WP488729 | Screw (Replaces: 9986-45) | 10 |
|
Immediately | $ 7.01 | |||
| 27 | 26088-22 | Cover, Heat Exchanger | 10 |
|
- | ||||
| 27 | 65013-16 | Heat Exchanger | 10 |
|
- | ||||
| 28 | WPW10143759 | Drier (Replaces: 13900) | 10 |
|
Immediately | $ 27.70 | |||
| 29 | 52085-29 | Thermostat, Defrost | 10 |
|
$ 70.25 | ||||
| 30 | RA43643-1 | Evaporator | 10 |
|
- | ||||
| 31 | 68834-1 | Housing, Evaporator | 10 |
|
- | ||||
| 31 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 32 | 55878-1 | Board, Terminal | 10 |
|
- | ||||
| 33 | 66325-17 | Seal | 10 |
|
- | ||||
| 34 | 65063-1 | Seal, Styrofoam-(left) | 10 |
|
- | ||||
| 35 | 65064-1 | Seal, Styrofoam-(right) | 10 |
|
- | ||||
| 36 | WP61001846 | Heater, Defrost (Replaces: 69848-1) | 10 |
|
Immediately | $ 45.83 | |||
| 37 | 29915-12 | Reflector | 10 |
|
- | ||||
| 37 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 38 | 52067-1 | Clip, Defrost Heater | 10 |
|
- | ||||
| 39 | 68838-1 | Wire Harness, Main | 10 |
|
- | ||||
| 39 | 68841-1 | Wire Harness, Compressor | 10 |
|
- | ||||
| 39 | 52561-1 | Bracket, Heater Shield | 10 |
|
- | ||||
| 40 | 66381-1 | Cover | 10 |
|
- | ||||
| 41 | WPW10662129 | Capacitor, Run (Replaces: 65889-6) | 10 |
|
Immediately | $ 52.97 | |||
| 41 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 42 | 29282-2 | Bracket, Mounting Timer | 10 |
|
- | ||||
| 42 | 405007-1 | Screw | 10 |
|
- | ||||
| 43 | 26527-11 | Tube, Drain | 10 |
|
- | ||||
| 44 | 29874-1 | Shroud Panel | 10 |
|
- | ||||
| 45 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 46 | 52526-1 | Grommet | 10 |
|
- |
