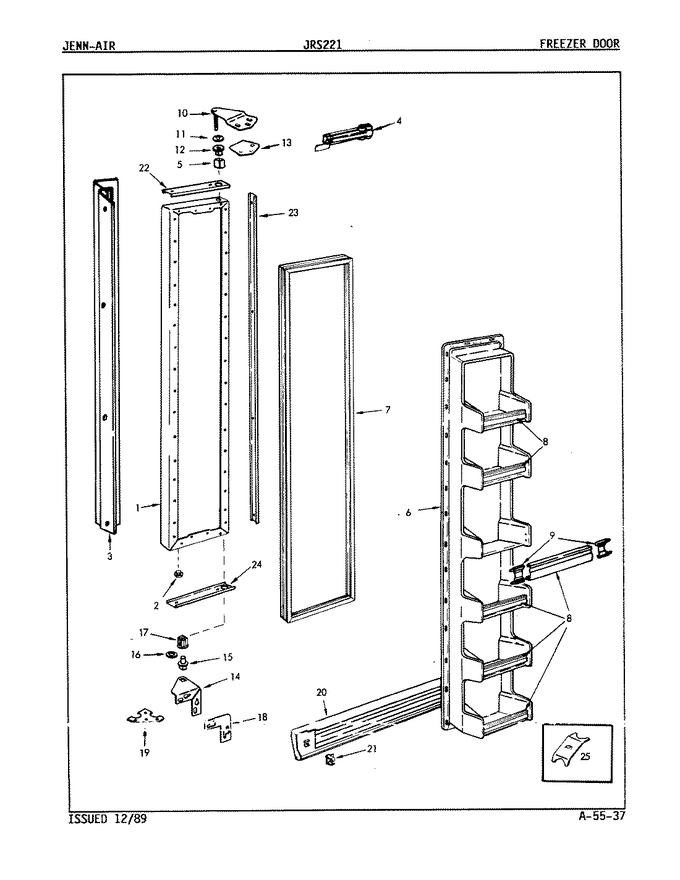

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66687-1-AM		Outer Panel-almond		Appelez-nous	-
1	66687-1-WW		Outer Panel-white		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	66799-1		Achor, Screw		Appelez-nous	-
3	65275-4		Screw		Appelez-nous	-
3	06100017		Handle		Appelez-nous	-
4	54485-1		Closer, Door		Appelez-nous	-
4	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
4	52613-1		Insulation, Closer		Appelez-nous	-
4	52614-1		Bracket, Closer		Appelez-nous	-
5	55990-1		Seal Sleeve		Appelez-nous	-
6	59433-215		Inner Panel		Appelez-nous	-
6	9986-12		Screw,door Liner		Appelez-nous	-
7	53712-23		Gasket, Door		Appelez-nous	-
8	WP61003045		Trim, Shelf   (Replaces: 68410-6)				$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	66875-1		Cover, Upper Hinge (chrome)		Appelez-nous	-
10	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
10	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
12	66036-2		Bushing, Upper Hinge		Appelez-nous	-
13	65031-1		Shim, Upper Hinge		Appelez-nous	-
14	60630-10		Hiner, Lower (chrome)				$ 26.18
14	403062-801		Screw		Appelez-nous	-
15	53672-1		Pin, Lower Hinge		Appelez-nous	-
16	54233-1		Washer				$ 7.71
17	66034-1		Bushing, Lower Hinge				$ 19.76
18	60626-1		Shim, Lower Hinge		Appelez-nous	-
19	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
20	58437-52		Kickplate		Appelez-nous	-
21	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
21	52854-3		Clip, Kickplate		Appelez-nous	-
22	06100020		Trim, Perimeter Top Fz		Appelez-nous	-
23	06100001		P. Trim, Side		Appelez-nous	-
24	06100021		Trim,bottom		Appelez-nous	-
25	66723-1		Clip		Appelez-nous	-
25	65275-15		Screw		Appelez-nous	-
