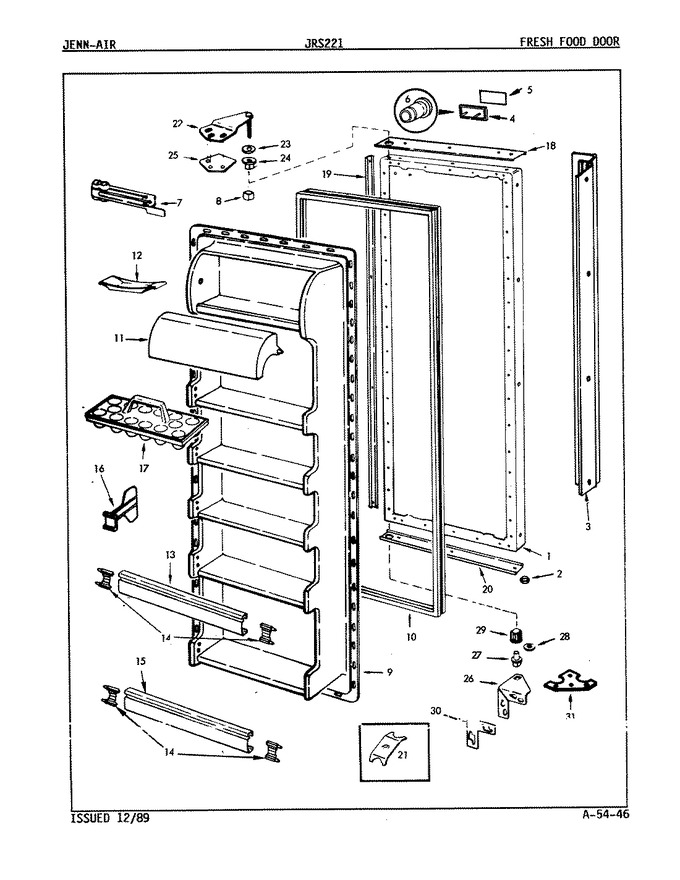

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66689-1-WW		Panel, F.f. Door (wht)		Appelez-nous	-
1	RA95060-1		Insulation Kit		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	66799-1		Achor, Screw		Appelez-nous	-
3	68206-2		Handle, F.f. Door		Appelez-nous	-
3	65275-4		Screw		Appelez-nous	-
4	66641-1		Bezel, Nameplate		Appelez-nous	-
5	68061-4		Insert, Nameplate		Appelez-nous	-
6	68381-1		Retainer, Nameplate Bezel		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
7	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
7	52614-1		Bracket, Closer		Appelez-nous	-
7	52613-1		Insulation, Closer		Appelez-nous	-
8	55990-1		Seal Sleeve		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
9	65945-10		Liner, F.f. Door		Appelez-nous	-
10	53712-16		Gasket		Appelez-nous	-
11	Y06100015		Dairy Door		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	WP61003045		Trim, Shelf   (Replaces: 68410-8)				$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	WP61003045		Trim, Shelf   (Replaces: 68410-8)				$ 129.55
16	64097-10		Organizer, Shelf		Appelez-nous	-
17	60066-13		Tray, Egg		Appelez-nous	-
18	06100013		Trim, Top Perim.		Appelez-nous	-
19	68205-2		Trim, Perimeter Trim (side)		Appelez-nous	-
20	06100014		Trim, Btm, Perim.		Appelez-nous	-
21	65275-15		Screw		Appelez-nous	-
21	66723-1		Clip		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
22	53709-22		Hinge, Upper		Appelez-nous	-
22	66875-1		Cover, Upper Hinge (chrome)		Appelez-nous	-
23	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
24	66036-1		Bushing,top/center Hinge		Appelez-nous	-
25	65031-1		Shim, Upper Hinge		Appelez-nous	-
26	403062-801		Screw		Appelez-nous	-
26	60630-12		Hinge, Lower		Appelez-nous	-
27	53672-1		Pin, Lower Hinge		Appelez-nous	-
28	54233-1		Washer				$ 7.71
29	66034-1		Bushing, Lower Hinge				$ 19.76
30	60626-1		Shim, Lower Hinge		Appelez-nous	-
31	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
