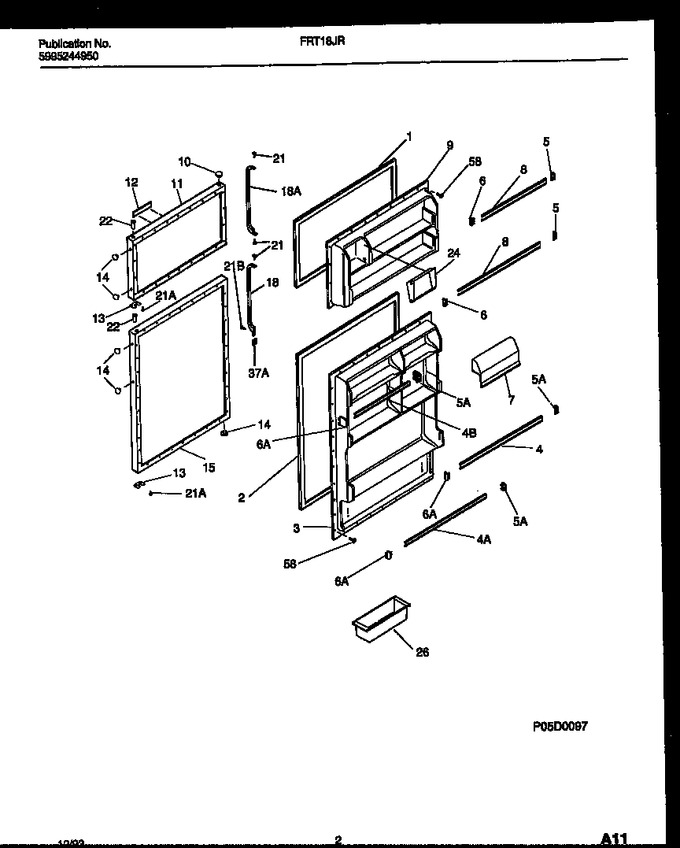

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket-frzr Door, Magnetic, White |
|
$ 130.56 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic, White |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516204 | Rack-door |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 215552601) |
|
Immediately | $ 23.39 | ||||
| 7 | 5303292375 | Door-dairy, (2) |
|
- | |||||
| 8 | 215516210 | Rack-door, (2) |
|
- | |||||
| 9 | 215466501 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917286 | Panel-frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 215008601 | Nameplate Assy, White |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 13 | 5308000255 | Door Stop-frzr |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917283 | Panel-refr Door, White, W/ Insulation, & Cross Brace |
|
- | |||||
| 18 | 215482103 | Handle-door, White |
|
- | |||||
| 21 | 5303272566 | Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Whit |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *89643 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 15A | 240494001 | Plug-button, White, Refr Door Front (non-illustrated) (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 15B | 215894100 | Brace-cross |
|
- | |||||
| 18A | 215482101 | Handle-door, White |
|
$ 102.70 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21B | 215733200 | Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2 |
|
- | |||||
| 37A | 215480201 | Trim-handle, End Cap, White, Lower |
|
- | |||||
| 4A | 215516220 | Rack-door (Replaces: 215516205) |
|
$ 54.58 | |||||
| 4B | 215516220 | Rack-door (Replaces: 215516203) |
|
$ 54.58 | |||||
| 5A | 215251401 | Support-door Rack, ``2-liter``, Rh/lh, (6) |
|
- |
