Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3186189 Endcap (right Hand) Appelez-nous -
1 3186188 Endcap (left Hand) Appelez-nous -
2 8523408 Support, Endcap (left Hand) Appelez-nous -
2 8523409 Support, Endcap (right Hand) Appelez-nous -
3 8524105 Panel, Control Appelez-nous -
4 W10276642 Screw   (Replaces: 4449746) Special Order $ 5.49

5 WPW10331686 Module, Spark   (Replaces: 8522964) In-Stock Immediately $ 354.47

6 8053505 Shield, Lower Heat Special Order $ 142.19

7 8523412 Bracket, Support Special Order $ 143.91

8 9756301 Cover, Upper Special Order $ 51.01

9 8053910 Shield, Heat Appelez-nous -
10 8273132 Cover, Lower Appelez-nous -
11 WP3196557 Screw   (Replaces: 3196169) In-Stock Immediately $ 7.16

12 8524252 Control, Range Special Order $ 0.01

13 W11233072 Screw   (Replaces: 3196178) In-Stock Immediately $ 12.62

19 WP8273564 Clip   (Replaces: 8273564) Special Order $ 10.85


    View Diagram in Separate Window     Print Icon   Print Part List

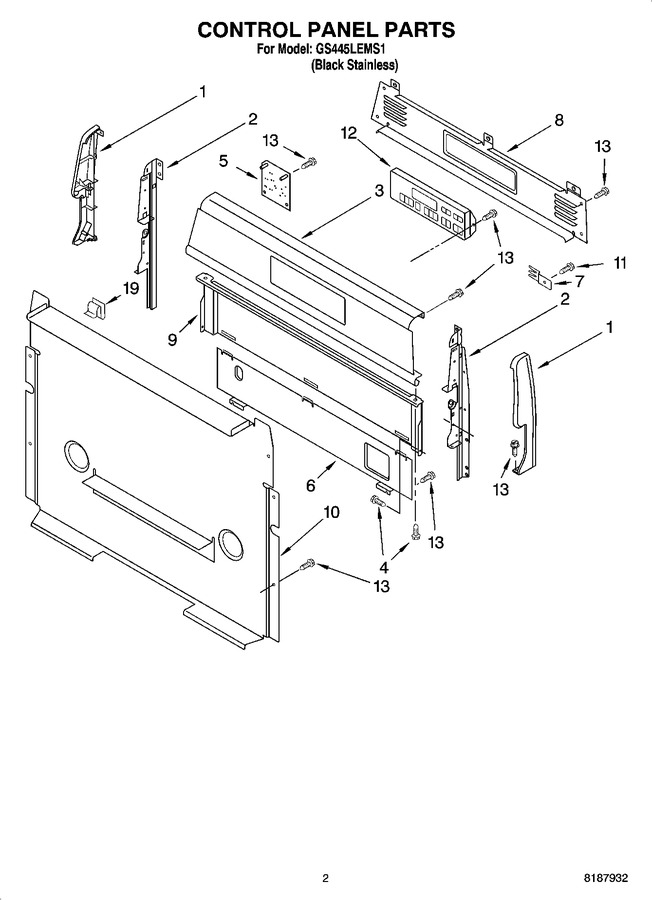

Diagram for GS445LEMS1
