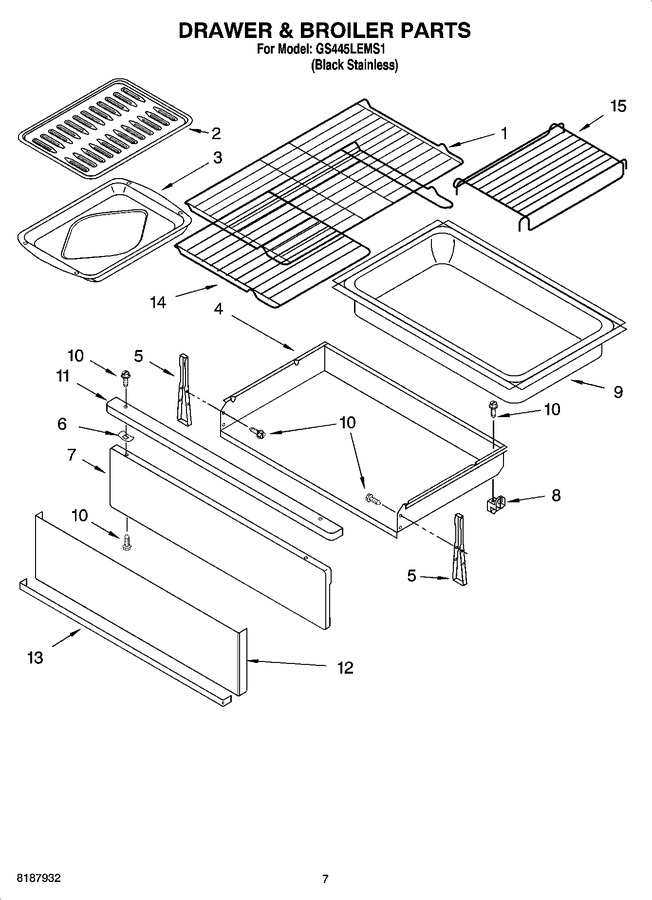

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: 3195710) |
|
Immediately | $ 42.16 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 3195996) |
|
$ 82.63 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 3196076) |
|
$ 279.38 | |||||
| 4 | 8272606 | Drawer, Storage |
|
- | |||||
| 5 | W11759228 | Bracket, Drawer (2) (Replaces: 3196817) |
|
$ 23.55 | |||||
| 6 | WP9781235 | Clip, Speed (Replaces: 9781235) |
|
$ 10.76 | |||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 181.36 | |||||
| 8 | WP8053334 | Spacer, Glide (Replaces: 8053334) |
|
Immediately | $ 7.06 | ||||
| 9 | 8272528 | Drawer, Liner |
|
- | |||||
| 10 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 11 | 8053949 | Handle, Drawer |
|
- | |||||
| 12 | 8053952 | Panel, Stainless |
|
- | |||||
| 13 | 8053950 | Trim, Bottom |
|
$ 82.35 | |||||
| 14 | WP8274021 | Rack, Partial (Replaces: 8274021) |
|
$ 136.38 | |||||
| 15 | WP8274022 | Rack, Insert (Replaces: 8274022) |
|
$ 123.77 |
