JRSDE228A | TransGlobal : Appliance Model Lookup

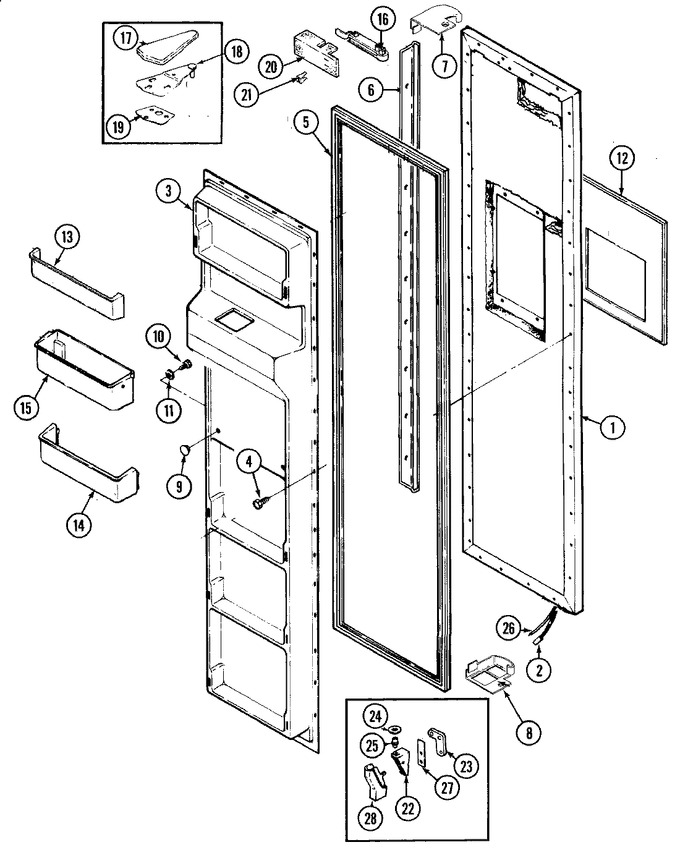

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	495034-900	Plug Button, Door	11	Appelez-nous	-
1	72446-705-AM	Panel, Frz. Door (alm)	11	Appelez-nous	-
2	69804-1	Wire Harness, Door	11	Appelez-nous	-
3	69252-1	Liner, Frz. Door	11	Appelez-nous	-
4	65275-5	Screw	11	Appelez-nous	-
5	70024-1	Gasket	11	Appelez-nous	-
6	65275-37	Screw, Handle	11	Appelez-nous	-
6	70305-18	Handle (alm)	11	Appelez-nous	-
7	70306-1	End Cap, Handle	11	Appelez-nous	-
8	65275-85	Screw	11	Appelez-nous	-
8	70306-2	End Cap, Handle	11	Appelez-nous	-
9	65660-2	Stud, Pick-off Shelf	11	Appelez-nous	-
10	WP90767	Screw (Replaces: 400014-1)	11		Immediately	$ 7.04
11	420028-1	Washer	11	Appelez-nous	-
12	69907-20	Escutcheon (alm)	11	Appelez-nous	-
12	405004-35	Screw	11	Appelez-nous	-
13	69870-30	Front, Pick Off	11	Appelez-nous	-
14	69870-29	Front, Pick Off	11	Appelez-nous	-
15	69873-21	Shelf, Pick-off	11	Appelez-nous	-
16	69258-1	Closer, Door	11	Appelez-nous	-
16	414004-1	Screw	11	Appelez-nous	-
17	70121-3	Cover, Upper Hinge (alm)	11	Appelez-nous	-
18	WP3-24838-048	Screw (Replaces: 65275-52)	11			$ 7.00
18	53709-22	Hinge, Upper	11	Appelez-nous	-
19	65031-1	Shim, Upper Hinge	11	Appelez-nous	-
20	52613-1	Insulation, Closer	11	Appelez-nous	-
20	70049-1	Insulation Door	11	Appelez-nous	-
21	69261-1	Bracket, Closer	11	Appelez-nous	-
22	65275-51	Screw, Lower Hinge	11	Appelez-nous	-
22	69516-3	Hinge, Lower (zinc)	11	Appelez-nous	-
23	67874-1	Tapping Plate, Lower Hinge	11	Appelez-nous	-
23	65275-59	Screw	11	Appelez-nous	-
24	67483-3	Washer, Door Spacer	11		Immediately	$ 45.86
25	70060-1	Pin, Hinge	11	Appelez-nous	-
26	WPW10426709	Tubing, Coil To Fountain (Replaces: 67187-29)	11			$ 126.83
27	69510-1	Shim, Lower Hinge	11	Appelez-nous	-
28	68978-3	Cover, Lower Hinge (alm)	11	Appelez-nous	-
28	65275-56	Screw	11	Appelez-nous	-
