SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Crusher & Bin


07 - Ice Maker


08 - Shelves & Accessories


09 - Unit Compartment & System


10 - Wiring Information

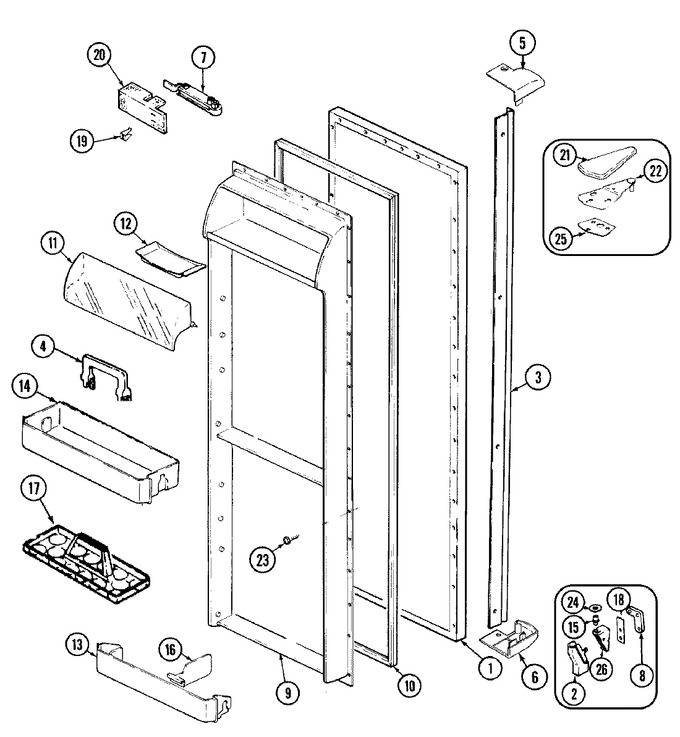

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72448-705-AM		Panel, F.f. Door (alm)	11	Appelez-nous	-
1	495034-900		Plug Button, Door	11	Appelez-nous	-
2	68978-3		Cover, Lower Hinge (alm)	11	Appelez-nous	-
3	65275-37		Screw, Handle	11	Appelez-nous	-
3	70305-18		Handle (alm)	11	Appelez-nous	-
4	69795-1		Retainer, Bottle	11	Appelez-nous	-
5	65275-85		Screw	11	Appelez-nous	-
5	70306-2		End Cap, Handle	11	Appelez-nous	-
6	70306-1		End Cap, Handle	11	Appelez-nous	-
7	414004-1		Screw	11	Appelez-nous	-
7	69258-1		Closer, Door	11	Appelez-nous	-
8	65275-59		Screw	11	Appelez-nous	-
8	67874-1		Tapping Plate, Lower Hinge	11	Appelez-nous	-
9	69243-1		Liner, F.f. Door----na	11	Appelez-nous	-
10	70024-4		Gasket, F.f. Door (wht)	11			$ 184.29
11	69918-3		Door, Dairy	11	Appelez-nous	-
12	29936-2		Tray, Butter	11	Appelez-nous	-
13	69871-3		Front, Pick-off	11	Appelez-nous	-
14	69872-3		Shelf, Pick-off	11	Appelez-nous	-
15	69845-1		Pin, Lower Hinge	11			$ 44.55
16	69759-2		Organizer	11	Appelez-nous	-
17	60066-1		Tray, Egg	11	Appelez-nous	-
18	69510-1		Shim, Lower Hinge	11	Appelez-nous	-
19	69261-1		Bracket, Closer	11	Appelez-nous	-
20	52613-1		Insulation, Closer	11	Appelez-nous	-
20	70049-1		Insulation Door	11	Appelez-nous	-
21	70121-3		Cover, Upper Hinge (alm)	11	Appelez-nous	-
22	53709-22		Hinge, Upper	11	Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 65275-52)	11			$ 7.00
23	65275-5		Screw	11	Appelez-nous	-
24	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	11		Immediately	$ 45.86
25	65031-1		Shim, Upper Hinge	11	Appelez-nous	-
26	65275-51		Screw, Lower Hinge	11	Appelez-nous	-
26	69516-4		Hinge, Lower (zinc)	11	Appelez-nous	-
