SELECT A DIAGRAM

01 - Freezer Compartment

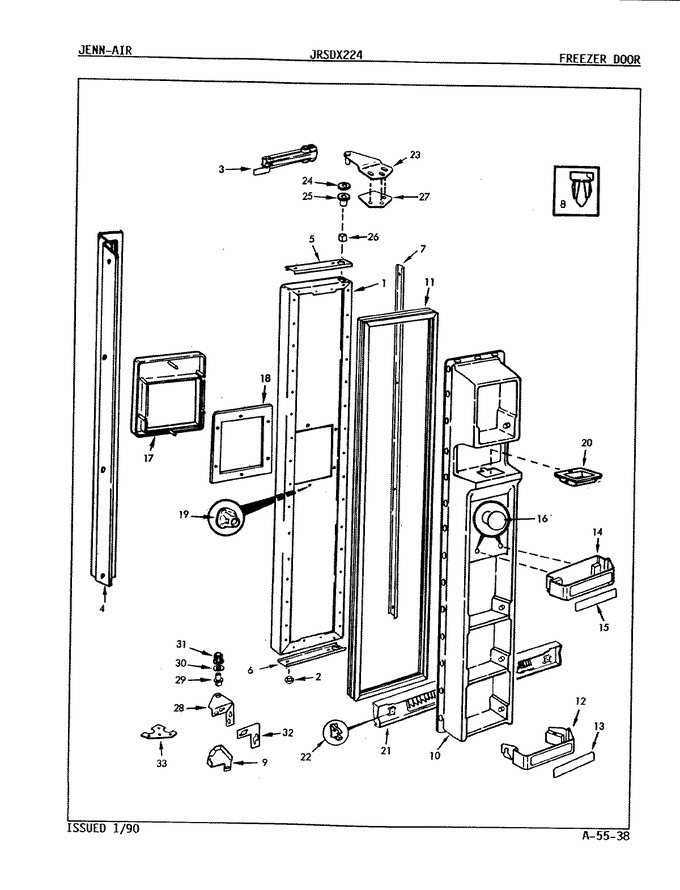

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice Cream Maker Kit (icm100)


06 - Ice Maker Kit


07 - Unit Compartment & System


08 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66685-1-WW		Outer Panel		Appelez-nous	-
1	66685-1-AM		Outer Panel		Appelez-nous	-
2	RA95060-1		Insulation Kit		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
4	66720-1		Door Handle		Appelez-nous	-
4	65275-4		Screw		Appelez-nous	-
5	66712-1		Perimeter Trim		Appelez-nous	-
6	66714-1		Perimeter Trim		Appelez-nous	-
7	W11233072		Screw   (Replaces: 400026-12)			Immediately	$ 12.62
7	66719-1		Perimeter Trim		Appelez-nous	-
8	66723-1		Clip		Appelez-nous	-
9	65131-1		Wire Cover		Appelez-nous	-
10	9986-12		Screw,door Liner		Appelez-nous	-
10	65951-7		Liner, Frz. Door		Appelez-nous	-
11	53712-1		Gasket		Appelez-nous	-
12	65701-10		Front, Pick-off		Appelez-nous	-
13	65571-34		Insert		Appelez-nous	-
14	65709-10		Shelf, Pick-off		Appelez-nous	-
15	65571-37		Insert		Appelez-nous	-
16	WP90767		Screw   (Replaces: 400014-1)			Immediately	$ 7.04
16	65660-2		Stud, Pick-off Shelf		Appelez-nous	-
16	420028-1		Washer		Appelez-nous	-
17	60482-37		Escutcheon		Appelez-nous	-
18	63057-1		Seal, Escutcheon		Appelez-nous	-
19	65211-2		Retainer, Escutcheon		Appelez-nous	-
20	402017-7		Screw		Appelez-nous	-
20	63020-6		Collar, Ice Chute		Appelez-nous	-
21	56478-27		Kickplate		Appelez-nous	-
22	52854-3		Clip, Kickplate		Appelez-nous	-
23	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
23	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
23	66875-1		Cover, Upper Hinge (chrome)		Appelez-nous	-
24	52185-2		Washer		Appelez-nous	-
25	66036-2		Bushing, Upper Hinge		Appelez-nous	-
26	55990-1		Seal Sleeve		Appelez-nous	-
27	65031-1		Shim, Upper Hinge		Appelez-nous	-
28	403062-5		Screw		Appelez-nous	-
28	60630-14		Hinge		Appelez-nous	-
28	400062-1		Screw		Appelez-nous	-
29	55479-1		Pin		Appelez-nous	-
30	54233-2		Washer		Appelez-nous	-
31	66035-1		Bushing		Appelez-nous	-
32	60626-1		Shim, Lower Hinge		Appelez-nous	-
33	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
