SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door

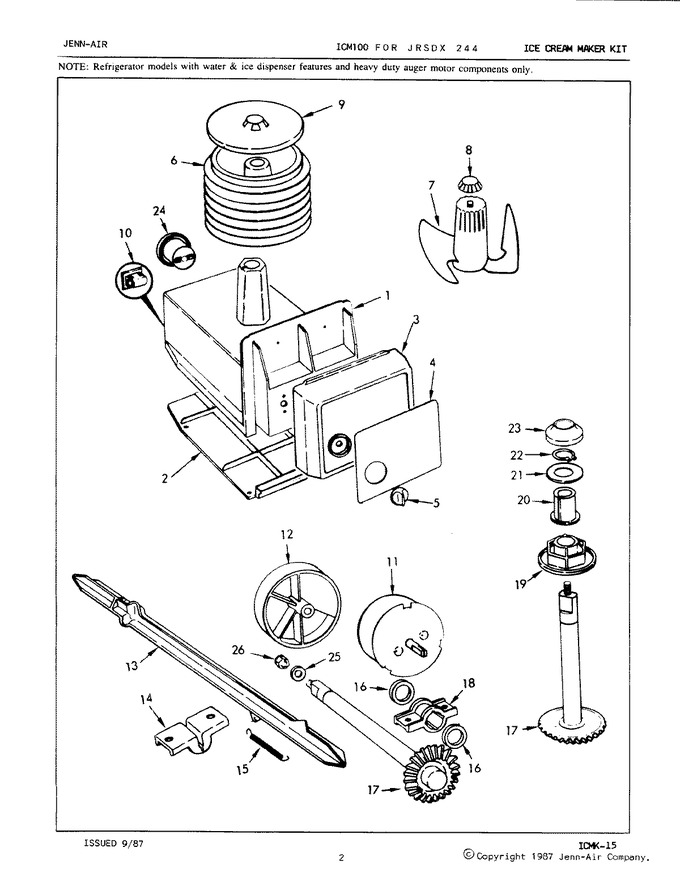

05 - Ice Cream Maker Kit (icm100)


06 - Ice Maker Kit


07 - Unit Compartment & System


08 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	66449-1		Base		Appelez-nous	-
2	65960-1		Bottom Base		Appelez-nous	-
2	402017-001		Screw		Appelez-nous	-
3	65126-1		Base Front		Appelez-nous	-
3	400001-1		Screw		Appelez-nous	-
4	65282-20		Insert, Front Trim		Appelez-nous	-
5	65128-2		Timer Knob		Appelez-nous	-
6	65122-1		Cannister		Appelez-nous	-
7	65127-1		Stirrer		Appelez-nous	-
8	65144-2		Stirrer Knob		Appelez-nous	-
9	65115-1		Cannister Lid		Appelez-nous	-
10	65184-2		Latch		Appelez-nous	-
11	406036-1		Screw		Appelez-nous	-
11	65341-1		Timer, Mechanical		Appelez-nous	-
12	65104-1		Timer Cam		Appelez-nous	-
13	65108-1		Plunger		Appelez-nous	-
14	65116-1		Bracket		Appelez-nous	-
14	400015-12		Screw		Appelez-nous	-
15	65142-1		Spring		Appelez-nous	-
16	54233-3		Spacer		Appelez-nous	-
17	65102-2		Gear & Shaft Assembly		Appelez-nous	-
18	400015-12		Screw		Appelez-nous	-
18	65109-1		Bearing Horizontal		Appelez-nous	-
19	65107-1		Bearing, Lower Vertical		Appelez-nous	-
20	65113-1		Bearing, Upper Vertical		Appelez-nous	-
21	420097-103		Washer		Appelez-nous	-
22	WP9703438		Retainer   (Replaces: 65100-1)			Immediately	$ 3.81
23	65233-1		Seal		Appelez-nous	-
24	65171-1		Drive Ring		Appelez-nous	-
25	420066-103		Washer		Appelez-nous	-
26	101768-1		Book, Ice Cream Maker		Appelez-nous	-
26	101128-1		Label, Ice Cream Maker		Appelez-nous	-
26	104331-1		Sheet, Fact		Appelez-nous	-
26	430087-103		Locknut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
