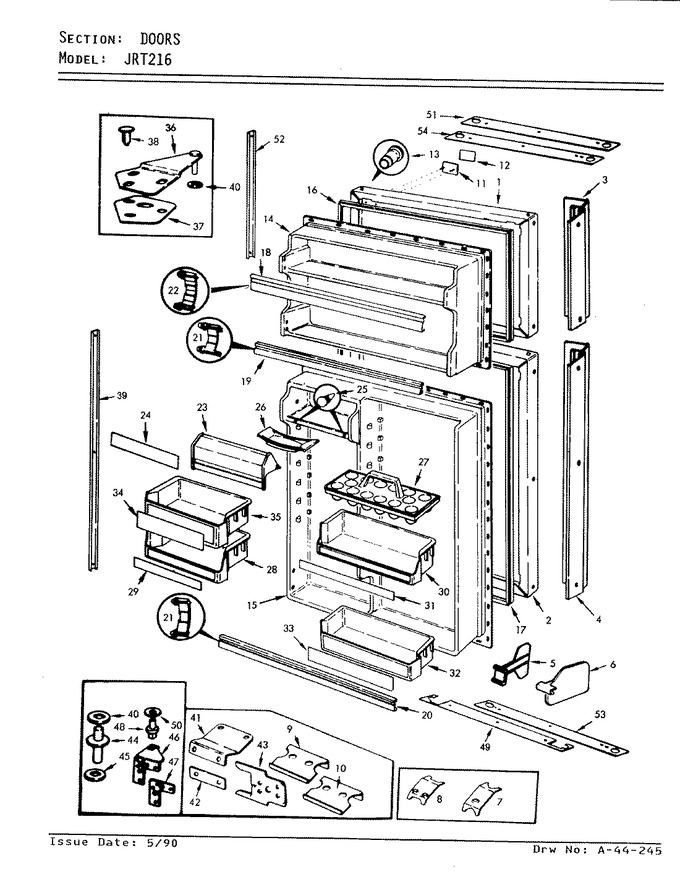

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68474-11-WW		Panel, Frz. Door (wht)		Appelez-nous	-
1	68474-11-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	68473-6-WW		Panel, Outer (wht)		Appelez-nous	-
2	68473-6-AM		Panel, Outer (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
3	68667-1		Handle		Appelez-nous	-
4	68666-1		Handle, F.f. Door		Appelez-nous	-
5	64097-10		Organizer, Shelf		Appelez-nous	-
6	65275-37		Screw, Handle		Appelez-nous	-
6	66645-5		Shelf, Pick-off		Appelez-nous	-
7	66799-1		Achor, Screw		Appelez-nous	-
8	60123-2		Clip, Stop Screw		Appelez-nous	-
9	60030-6		Door Stop, Frzr Door		Appelez-nous	-
10	60030-5		Door Stop, F.f. Door		Appelez-nous	-
10	65275-18		Screw, Freezer Stop		Appelez-nous	-
11	66641-1		Bezel, Nameplate		Appelez-nous	-
12	68061-4		Insert, Nameplate		Appelez-nous	-
13	65211-1		Retainer, Nameplate		Appelez-nous	-
14	65928-5		Liner, Frz. Door		Appelez-nous	-
15	9986-12		Screw,door Liner		Appelez-nous	-
15	68905-1		Inner Panel		Appelez-nous	-
16	66199-5		Gasket, Frz. Door		Appelez-nous	-
17	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
18	WP61003045		Trim, Shelf   (Replaces: 68410-31)				$ 129.55
19	WP61003045		Trim, Shelf   (Replaces: 68410-28)				$ 129.55
20	WP61003045		Trim, Shelf   (Replaces: 68410-38)				$ 129.55
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
23	60406-44		Door, Dairy		Appelez-nous	-
24	68128-20		Trim, Dairy Door		Appelez-nous	-
25	28272-6		Bumper, Door		Appelez-nous	-
26	29936-2		Tray, Butter		Appelez-nous	-
27	60066-13		Tray, Egg		Appelez-nous	-
28	60037-37		Shelf, Pick-off		Appelez-nous	-
29	68130-48		Trim, Pick-off		Appelez-nous	-
30	60037-36		Shelf, Pick-off		Appelez-nous	-
31	68130-46		Trim, Pick-off		Appelez-nous	-
32	60037-38		Shelf, Pick-off		Appelez-nous	-
33	68130-49		Trim, Pick-off Shelf		Appelez-nous	-
34	68130-47		Trim		Appelez-nous	-
35	60037-35		Door Shelf		Appelez-nous	-
36	53709-20		Hinge, Upper		Appelez-nous	-
36	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
36	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
37	65031-1		Shim, Upper Hinge		Appelez-nous	-
38	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
38	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
39	68195-2		Trim, Perimeter (side)		Appelez-nous	-
40	54233-2		Washer		Appelez-nous	-
40	54233-1		Washer				$ 7.71
40	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
41	68811-2		Hinge, Center		Appelez-nous	-
42	68812-1		Shim, Center Hinge		Appelez-nous	-
43	65275-24		Screw		Appelez-nous	-
43	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
44	67322-1		Pin, Center Hinge		Appelez-nous	-
45	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
46	403100-801		Screw		Appelez-nous	-
46	67714-6		Hinge, Lower		Appelez-nous	-
47	403100-801		Screw		Appelez-nous	-
47	60626-1		Shim, Lower Hinge		Appelez-nous	-
47	65790-3		Tapping Plate		Appelez-nous	-
48	68788-1		Hinge Pin		Appelez-nous	-
49	68673-2		Trim, Perimeter (lower)		Appelez-nous	-
50	56186-10		Plug Button, (white)		Appelez-nous	-
50	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
50	56186-6		Plug Button, (almond)		Appelez-nous	-
51	68671-2		Trim, Perimeter (upper)		Appelez-nous	-
52	68196-2		Trim, Perimeter (side)		Appelez-nous	-
53	68673-2		Trim, Perimeter (lower)		Appelez-nous	-
54	65275-39		Screw		Appelez-nous	-
54	68671-2		Trim, Perimeter (upper)		Appelez-nous	-
54	65275-45		Screw		Appelez-nous	-
