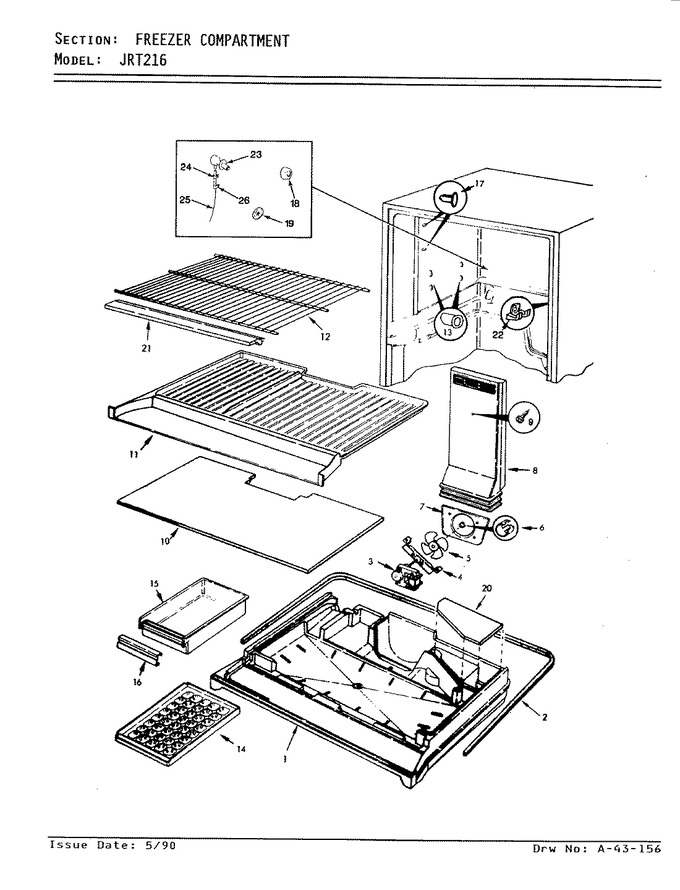

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67520-2		Foam Tray		Appelez-nous	-
2	67730-1		Seal, Front Corner		Appelez-nous	-
2	68866-3		Foam Seal		Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)			Immediately	$ 104.99
3	404062-1		Screw, Fan Motor Mounting		Appelez-nous	-
4	60565-1		Wire Harness		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
5	64359-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	60608-2		Orifice, Fan Blade		Appelez-nous	-
8	68592-3		Tunnel, Air		Appelez-nous	-
8	66325-9		Seal, Foam Tray		Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
10	66403-2		Cover, Evaporator		Appelez-nous	-
11	66325-10		Seal, Frost Chest		Appelez-nous	-
11	66478-1		Bottom, Frz.		Appelez-nous	-
12	60438-16		Shelf, Wire		Appelez-nous	-
13	60313-1		Cup, Shelf		Appelez-nous	-
14	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
15	60653-1		Pan, Ice		Appelez-nous	-
16	60132-113		Handle Insert		Appelez-nous	-
17	67557-1		Plug Button		Appelez-nous	-
18	68387-1		Cap, Grommet		Appelez-nous	-
19	68187-1		Cap, Connector		Appelez-nous	-
20	66480-5		Cover, Plenum		Appelez-nous	-
21	67176-6		Trim		Appelez-nous	-
22	400019-1		Screw		Appelez-nous	-
22	66101-1		Stud, Shelf		Appelez-nous	-
23	68307-1		Grommet, Water Entry		Appelez-nous	-
24	WPM0114003		Clamp, Spring   (Replaces: 60333-4)				$ 9.95
25	WPB5705307		Tubing, Valve To Grommet   (Replaces: 67579-7)				$ 11.19
26	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
26	WP33002917		Screw   (Replaces: 65275-1)			Immediately	$ 6.90
