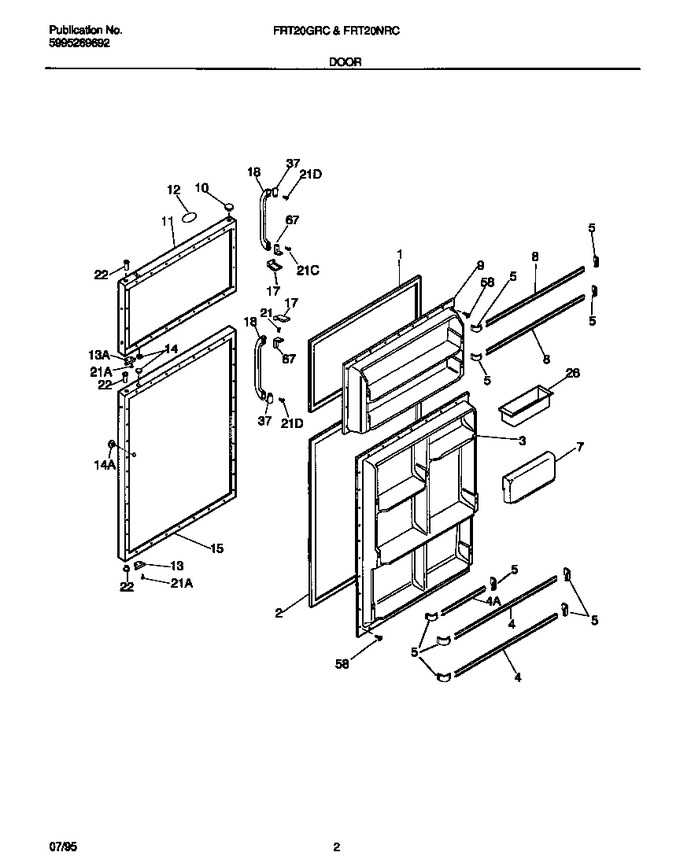

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776705		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732409		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	215434601		Panel-inner Door, Refr		Appelez-nous	-
4	215516267		Rack-door, Full-width, (2)		Appelez-nous	-
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	5303310094		Door-dairy		Appelez-nous	-
8	215516269		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215676811		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	5303917661		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	215361311		Handle End, Almond		Appelez-nous	-
18	215339611		Handle-door, Almond		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215361411		Trim, Handle, Almond		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
67	215367300		Bracket-handle Mtg,(2)		Appelez-nous	-
*10760	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215008608		Label-nameplate, Almond, Frigidaire (not Illustrated)		Appelez-nous	-
12B	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14A	215562111		Plug-button, Almond Refr Door Front		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21C	215416100		Screw-handle/brkt, Flat Head, Cr, 10-32 X 7/16		Appelez-nous	-
21D	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
4A	215516268		Rack-door, Short		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
