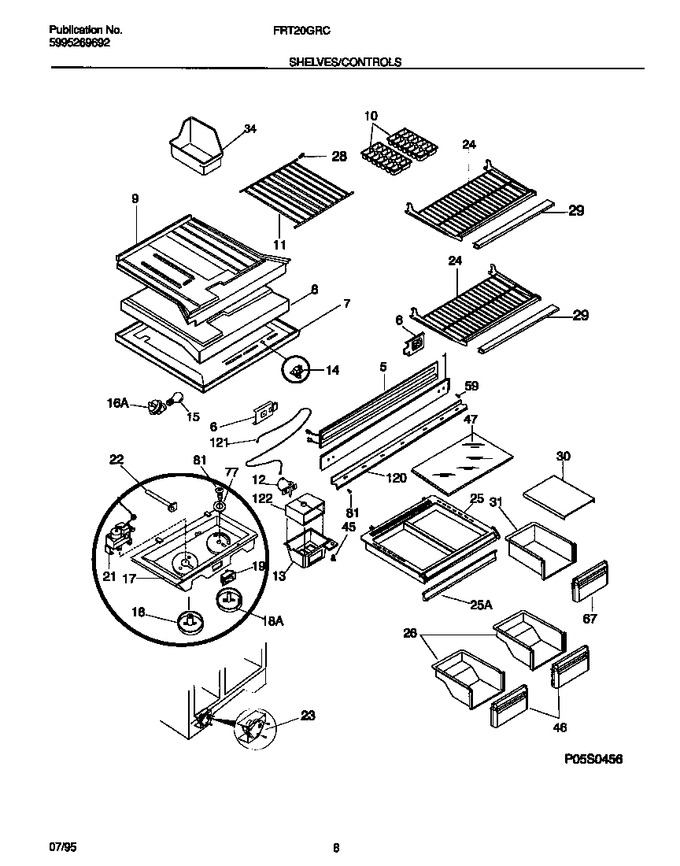

04 - Shelves/controls


06 - System


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	215096800		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	215055803		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303297948		Shelf-freezer,flat,full-width,wire		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	215420300		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	215932904		Box-control		Appelez-nous	-
18	5303308309		Knob-temp Control, Refr		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303305486		Control-temperature				$ 122.43
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
24	5303310708		Shelf, Cantilever, Full Width, Wire		Appelez-nous	-
25	215216639		Cover-crisper Pan, W/beam & Trim, Less Insert		Appelez-nous	-
26	215298001		Pan-crisper(2)				$ 122.12
28	215341200		End Cap-shelf, Protector				$ 2.54
29	5303292381		Trim-full Shelf, Front		Appelez-nous	-
30	5303207338		Cover-meat Pan		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303289069		Container-ice		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303310089		Front-crisper Pan, (2)		Appelez-nous	-
47	218498105		Insert-pan Cover, Glass, Clear, White Graphics		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
67	215357805		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019201		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
122	218561201		Block-air Deflector, Rh		Appelez-nous	-
*10764	215848000		Spacer-air Channel		Appelez-nous	-
11A	215934600		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
11B	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
121A	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
122A	218561203		Block-air Deflector, Lh		Appelez-nous	-
12A	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12B	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
13A	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
17A	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
18A	5303308310		Knob-temp Control, (damper)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23C	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
25A	5303310091		Trim-crisper Cover		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
