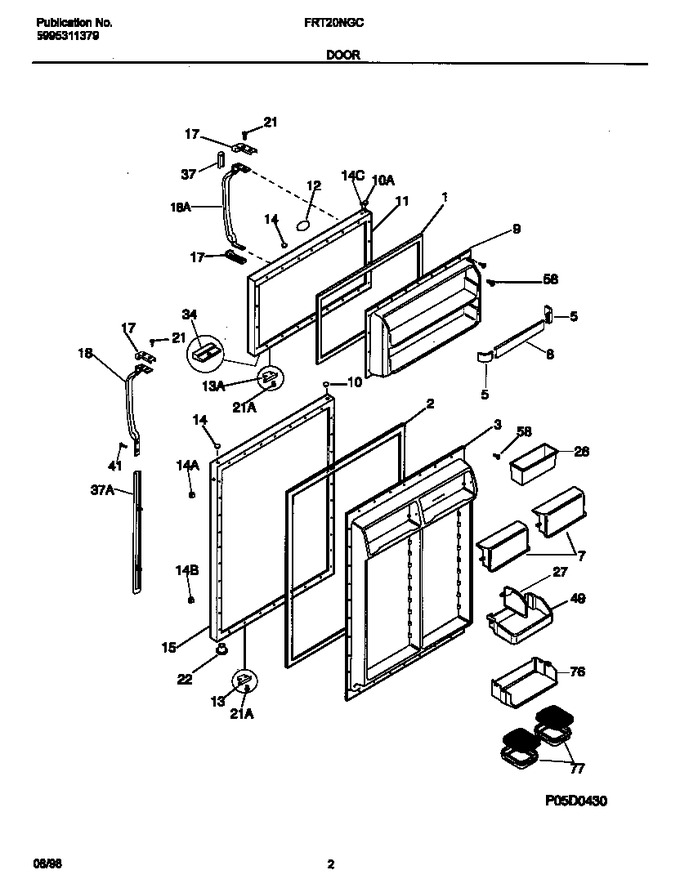

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608905		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730612		Gasket-refr Door, Almond, Magnetic				$ 98.50
3	215434701		Panel, Inner Door Refr		Appelez-nous	-
7	5303308347		Door-dairy		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 218763603)				$ 54.58
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	218696502		Plug-button, Almond, Lg Closer Hole		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917989		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14	218696602		Plug-button, Almond, Sm Closer Hole		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
14	215352211		Plug-button, Almond, Handle Mtg, Refr Door Front		Appelez-nous	-
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
17	218696404		Handle End, Almond		Appelez-nous	-
18	215981319		Handle-door, Almond, Frzr, Soft Grip		Appelez-nous	-
18	215983219		Handle-door, Almond, Refr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	218783201		Bumper-light Switch, White		Appelez-nous	-
37	218811602		Trim-handle,almond ,refr Door ,w/dec Gold Band,& Snap-on		Appelez-nous	-
37	215867077		Trim-handle,almond ,lower ,w/gold Band ,and Lock		Appelez-nous	-
37	218549830		Trim-handle, Almond, Upper, W/dec Gold Band		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*31120	5303001380		Screw		Appelez-nous	-
*31121	215008605		Label-nameplate,almond		Appelez-nous	-
*31123	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*31124	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
15A	5303917563		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
15B	5303917564		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676003		Band-decorative, Gold				$ 47.11
37D	218807701		Lock-handle Trim,stick-on		Appelez-nous	-
5A	218809701		Support-door Rack, Lh		Appelez-nous	-
5B	218809801		Support-door Rack, Rh		Appelez-nous	-
