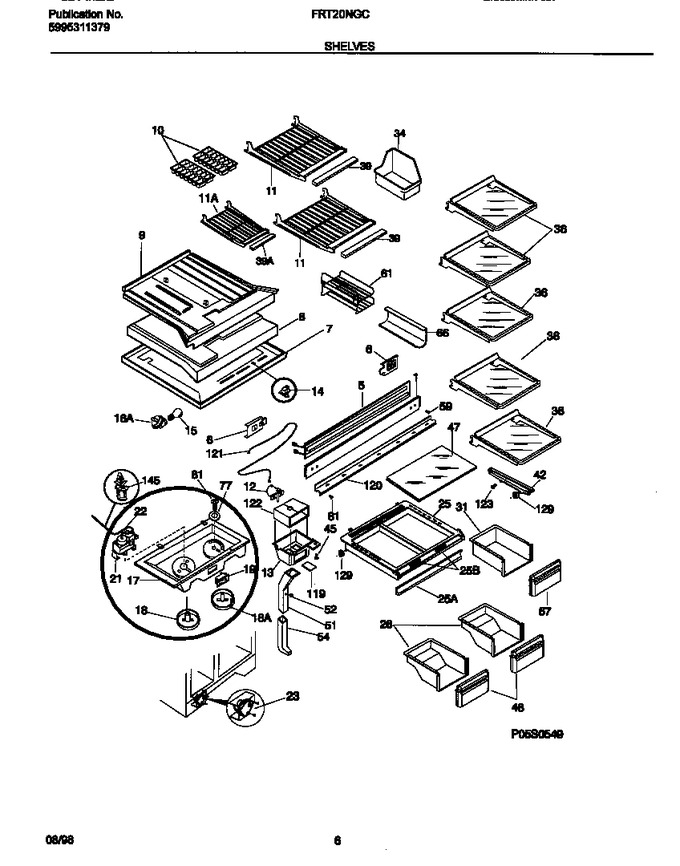

04 - Shelves
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303299279 | Mullion, White |
|
- | |||||
| 5 | 215634100 | Heater-mullion |
|
- | |||||
| 7 | 218646701 | Top Panel-refr |
|
- | |||||
| 8 | 215062700 | Divider,styrofoam |
|
- | |||||
| 9 | 215058300 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303292384 | Shelf-freezer, Cantilever, Narrow |
|
- | |||||
| 11 | 5303292383 | Shelf-freezer, Cantilever, Wide, (2) |
|
- | |||||
| 12 | 218634902 | Deflector-air,``paddle`` |
|
$ 48.01 | |||||
| 13 | 218629900 | Cover-air Deflector |
|
$ 23.96 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17 | 215932905 | Control Box |
|
- | |||||
| 18 | 5303310731 | Knob-temp Control, Refr |
|
- | |||||
| 18 | 5303310732 | Knob-temp Control, (damper) |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5304402184 | Control-temperature |
|
$ 147.42 | |||||
| 22 | 218660701 | Tube, Insulator, Plastic, On Temp Sensor |
|
- | |||||
| 23 | 215846602 | Timer-defrost (Replaces: 5303321133) |
|
Immediately | $ 28.20 | ||||
| 25 | 215216635 | Cover-crisper Pan,with Beam ,rollers,trim,and Humid Cont |
|
$ 205.80 | |||||
| 25 | 5303307881 | Control-humidity |
|
- | |||||
| 25 | 5303308349 | Trim-crisper Cover |
|
- | |||||
| 26 | 215298001 | Pan-crisper(2) |
|
$ 122.12 | |||||
| 31 | 5303304632 | Pan-meat |
|
$ 267.86 | |||||
| 34 | 5303289069 | Container-ice |
|
- | |||||
| 36 | 215406115 | Shelf-``spill-safe``, Fixed, Teal Graphics |
|
$ 236.72 | |||||
| 39 | 215217539 | Trim-frzr Shelf, Narrow |
|
- | |||||
| 39 | 5303284480 | Trim-frzr Shelf, Wide |
|
- | |||||
| 42 | 215002301 | Hanger-pan / Tray, Lh |
|
$ 65.82 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 218278401 | Front-crisper Pan, (2) |
|
- | |||||
| 47 | 218390565 | Insert-pan Cover, Glass, Clear, W/teal Graphics |
|
- | |||||
| 51 | 215132809 | Duct-meat Keeper, Upper |
|
- | |||||
| 52 | 215132901 | Control, Damper, Meat Kpr Duct |
|
- | |||||
| 54 | 215133100 | Duct, Meat Keeper, Lower |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 61 | 218620901 | Shelf-ice Tray |
|
- | |||||
| 66 | 241657701 | Rack-wine (Replaces: 5304402116) |
|
$ 57.41 | |||||
| 67 | 218278701 | Front-meat Pan |
|
- | |||||
| 77 | 5303001216 | Washer-nylon,3/16 X 5/8 Od |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 119 | 215132700 | Cap, Air Duct |
|
$ 18.38 | |||||
| 120 | 218019201 | Seal-refr Top |
|
- | |||||
| 123 | 215005101 | Screw-roller/hanger,8-10 X .438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *31136 | 5303001380 | Screw |
|
- | |||||
| *31137 | 215363800 | Spacer-air Deflectr |
|
- | |||||
| *31138 | 215363900 | Washer-air Deflectr |
|
- | |||||
| *31139 | 215935700 | Nut-anchor |
|
- | |||||
| *31140 | 5308016567 | Nut-anchor |
|
- | |||||
| *31141 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *31142 | 215277000 | Cover-defrost Timer, Top |
|
- | |||||
| *31143 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| *31144 | 5303289058 | Shield-defrost Timr,btm |
|
- | |||||
| *31145 | 215002401 | Hanger-pan/tray, Rh |
|
$ 85.84 | |||||
| *31146 | 215133200 | Insulation-air Duct,rear |
|
- | |||||
| *31147 | 215133300 | Insulation-air Duct,front |
|
- | |||||
| *31148 | 215133000 | Damper-air,meat Kpr Duct |
|
- | |||||
| *31149 | 218430200 | Gasket/spacer,ice Tray Shelf |
|
- | |||||
| *31150 | 215339100 | Seal-divider Throat |
|
- | |||||
| *31151 | 215339900 | Clip-shelf |
|
$ 5.83 | |||||
| *31152 | 215359900 | Seal-divider Front |
|
- | |||||
| *31153 | 215848000 | Spacer-air Channel |
|
- | |||||
| *31154 | 218771500 | Service Data Sheet |
|
- | |||||
| 121A | 215364001 | Cable-damper Contrl |
|
$ 82.01 | |||||
| 121B | 215209400 | Nut,push-on ,damper Cable |
|
- | |||||
| 122A | 218561202 | Block-air Deflector, Rh |
|
- | |||||
| 122B | 218561204 | Block-air Deflector, Lh |
|
- | |||||
| 129A | 5303299152 | Roller-hanger |
|
$ 12.34 | |||||
| 129B | 5303299153 | Bearing-roller |
|
$ 5.09 | |||||
| 6A | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 6B | 218845600 | Tapping Plate,mullion Mtg ,(2) |
|
- |
