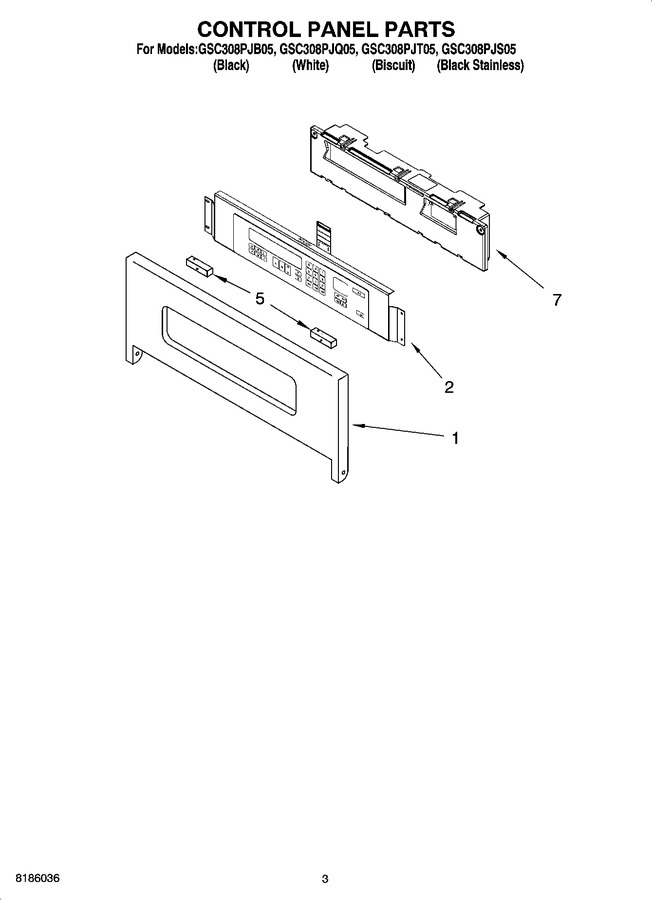

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4452604		Control Panel Assy (black)		Appelez-nous	-
1	4451791		Control Panel Assy (black Stainless)		Appelez-nous	-
1	4452605		Control Panel Assy (white)		Appelez-nous	-
1	4452974		Control Panel Assy (biscuit)		Appelez-nous	-
2	8302030		Switch Membrane (black)		Appelez-nous	-
2	8302032		Switch Membrane (white)		Appelez-nous	-
2	8302029		Switch Membrane (biscuit)		Appelez-nous	-
2	WP3400832		Switch, Membrane (screw)   (Replaces: 3400832)			Immediately	$ 6.98
5	4452260		Spacer, Foam		Appelez-nous	-
7	8301989		Assy, Control				$ 0.01
7	3400406		Screw		Appelez-nous	-
