Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP9759413 Door Liner   (Replaces: 4455618) Special Order $ 317.54

2 8300573 Hinge, Door (r.side) Appelez-nous -
2 WP9760574 Hinge, Door (l.side)   (Replaces: 8300574) In-Stock Immediately $ 60.36

2 WP9760571 Hinge, Door (r.side)   (Replaces: 8300571) In-Stock Immediately $ 98.15

2 WP9760572 Hinge, Door (l.side Hinge, Door For Stainless Model)   (Replaces: 8300572) Special Order $ 95.97

2 WP4449743 Hinge, Door (screw)   (Replaces: 4449743) Special Order $ 6.47

3 WP4449259 Glass, Inner   (Replaces: 4449259) Special Order $ 182.86

4 WP4451722 Insulation, Door And Bottom Door   (Replaces: 4451722) Special Order $ 162.66

5 8300778 Retainer, Glass Appelez-nous -
5 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

10 WP4449263 Glass, Inner   (Replaces: 4449263) In-Stock Immediately $ 151.10

12 WP9759074 Door Glass (black Stainless)   (Replaces: 8300895) Special Order $ 376.41

12 8300894 Door Glass (biscuit) Appelez-nous -
12 8300903 Door Glass (black Model) Appelez-nous -
12 8300899 Door Glass (white Model) Appelez-nous -
13 4452860 Door Handle (biscuit) Appelez-nous -
13 4448854 Door Handle (black) Special Order $ 74.07

13 4448855 Door Handle (white) Appelez-nous -
14 4450813 Bracket, Handle Special Order $ 24.20

14 W10276642 Screw   (Replaces: 4451040) Special Order $ 5.49

19 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

19 4450362 Shield, Heat Appelez-nous -
20 4450470 Retainer, Glass-clip Appelez-nous -
20 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

21 8300820 Seal, Door Top Appelez-nous -
23 4452119 Retainer, Glass (biscuit) Appelez-nous -
23 4450864 Retainer, Glass (white) Appelez-nous -
23 4450863 Retainer, Glass (black) Appelez-nous -
24 8300974 Glass, Inner Special Order $ 82.26


    View Diagram in Separate Window     Print Icon   Print Part List

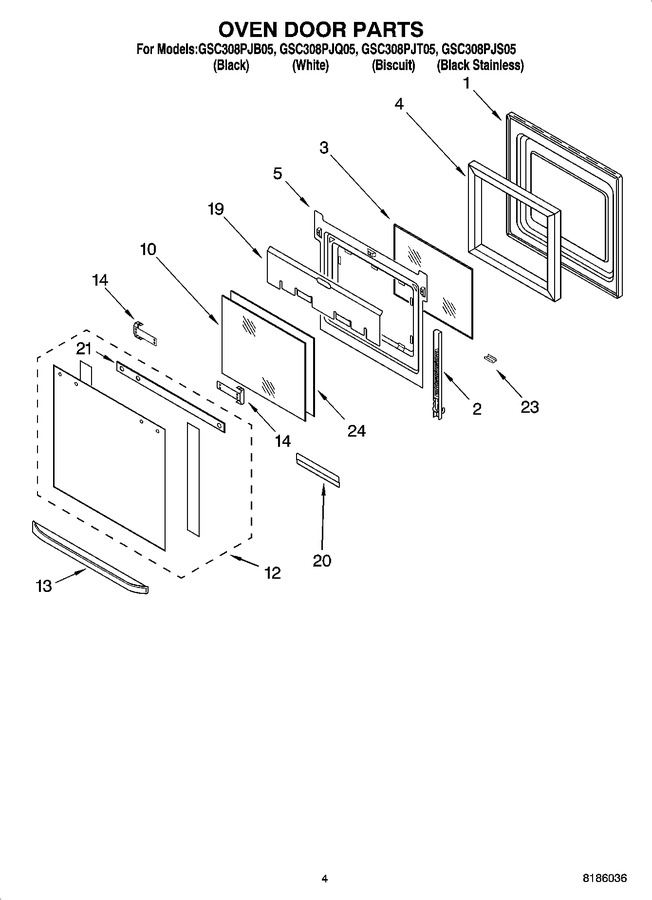

Diagram for GSC308PJT05
