SELECT A DIAGRAM

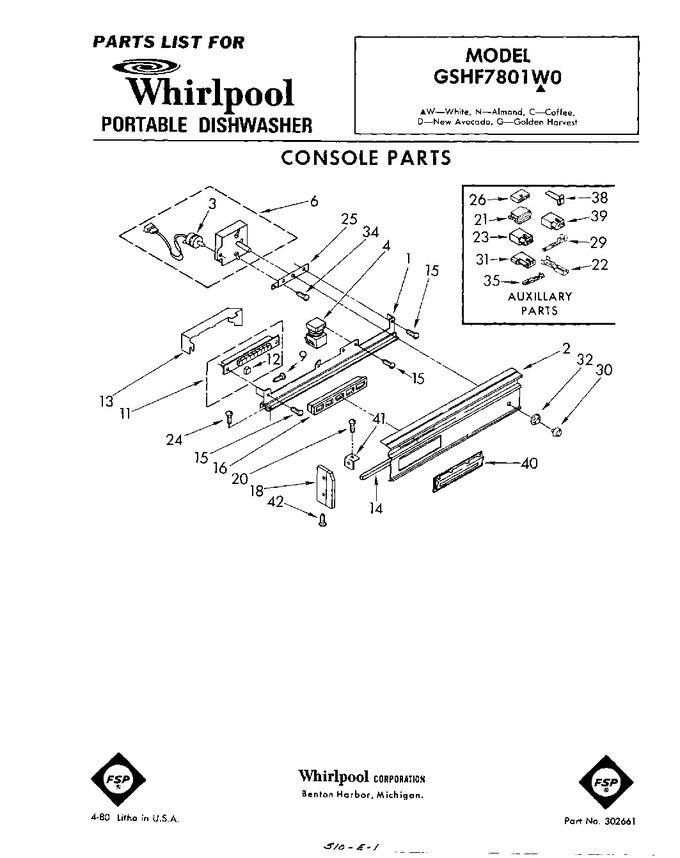

01 - Console


02 - Door


03 - Tub , Lit/optional


04 - Cabinet


05 - Dishrack


06 - Pump And Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300750		Bracket, Control		Appelez-nous	-
2	302265		Panel, Escutcheon		Appelez-nous	-
3	301320		Motor, Timer		Appelez-nous	-
4	300553		Relay, Start		Appelez-nous	-
6	302573		Timer, Disconnect		Appelez-nous	-
9	WP488627		Screw, 8-18 X 1/2   (Replaces: 300128)				$ 6.81
11	302068		Switch, Pushbutton		Appelez-nous	-
12	301978		Button (7)		Appelez-nous	-
13	300242		Barrier, Pushbutton Switch		Appelez-nous	-
14	719860		Baffle		Appelez-nous	-
15	WP489128		Screw,   (Replaces: 98209)				$ 9.79
16	301878		Grille, Vent		Appelez-nous	-
18	301877		Cap, End (r.h.)		Appelez-nous	-
18	301934		Cap, End (l.h.)		Appelez-nous	-
20	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 12.65
21	W10876590		Disconnect Block (black)   (Replaces: 352089)				$ 11.48
22	352088		Terminal, Female (disconnect Black)				$ 5.83
23	717252		Receptacle, Terminal (timer Motor)		Appelez-nous	-
24	WP487353		Screw, 6-20 X .38   (Replaces: 301502)				$ 6.81
25	301875		Bracket, Timer Mounting		Appelez-nous	-
26	719585		Connector, Terminal (motor)		Appelez-nous	-
29	94613		Terminal, (male)		Appelez-nous	-
30	302180		Knob, Timer		Appelez-nous	-
31	353425		Receptacle (wetting Agent Dispenser)		Appelez-nous	-
32	302067		Dial, Indicator		Appelez-nous	-
34	WP356418		Screw (2)   (Replaces: 96435)				$ 7.13
35	WP94614		Terminal (female)   (Replaces: 94614)				$ 6.90
38	302162		Retainer, Harness		Appelez-nous	-
39	717253		Plug, Terminal		Appelez-nous	-
40	302258		Bezel Assembly		Appelez-nous	-
41	301872		Bracket, End Cap		Appelez-nous	-
42	358225		Screw, 8-18		Appelez-nous	-
