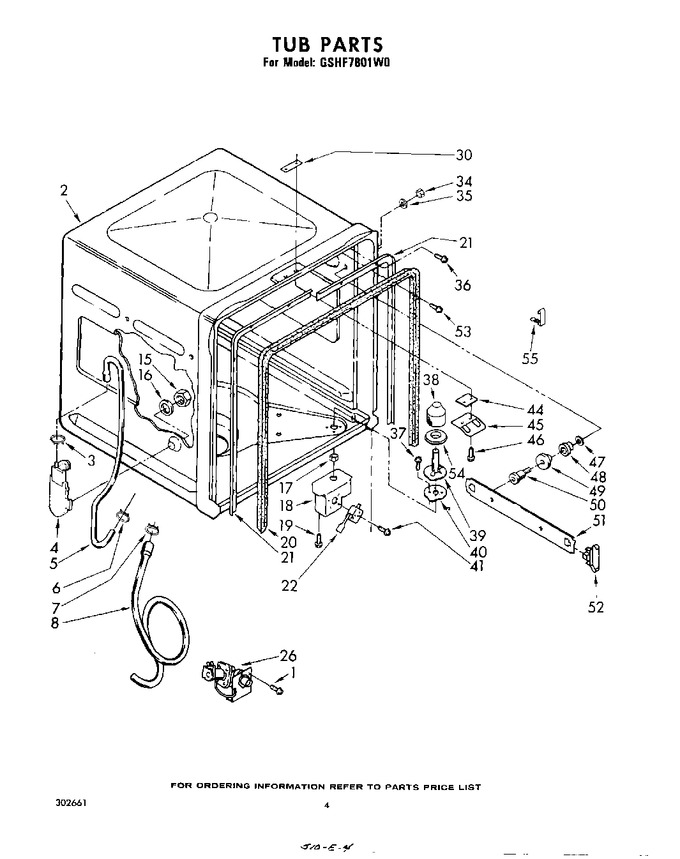

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
2	302095		Tub Assembly		Appelez-nous	-
3	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
4	300974		Inlet, Water		Appelez-nous	-
5	301053		Hose, Inlet		Appelez-nous	-
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
7	719953		Clamp		Appelez-nous	-
8	300275		Hose, Drain		Appelez-nous	-
15	713799		Nut, 7/18-16		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, .125				$ 12.83
18	719342		Bracket, Overflow		Appelez-nous	-
19	718250		Screw, 8 X 1/2		Appelez-nous	-
20	302090		Gasket (alternate)		Appelez-nous	-
20	302091		Gasket (alternate)		Appelez-nous	-
20	302092		Gasket (alternate)		Appelez-nous	-
21	302094		Retainer (l.h.)		Appelez-nous	-
21	302093		Retainer (r.h.)		Appelez-nous	-
22	301671		Switch, Pressure		Appelez-nous	-
22	301672		Switch, Pressure (alternate)		Appelez-nous	-
26	719495		Valve, Water Inlet		Appelez-nous	-
30	719455		Nut, Twin Spring		Appelez-nous	-
34	718829		Locknut		Appelez-nous	-
35	717624		Washer		Appelez-nous	-
36	WP90767		Screw, 8a X 3/8 (ground)   (Replaces: 90767)			Immediately	$ 7.04
37	WP488729		Screw, 8-18 X .50   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	98086		Screw, 4-40 X 3/4		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-12 X 1/2   (Replaces: 455524)			Immediately	$ 7.08
47	718750		Washer		Appelez-nous	-
48	718817		Washer, Cup		Appelez-nous	-
49	300844		Wheel Assembly		Appelez-nous	-
50	712499		Screw, Shoulder		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	719266		Screw, 8-18 X 5/8		Appelez-nous	-
54	301662		Gasket, Standpipe		Appelez-nous	-
55	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
55	350956		(13 Oz.) (almond)				$ 46.30
55	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
55	301315		Instructions, Installation		Appelez-nous	-
55	302019		Guide, Use & Care		Appelez-nous	-
55	302661		List, Parts		Appelez-nous	-
55	301663		Clip, Gasket		Appelez-nous	-
55	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
55	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
55	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
55	350930		(13 Oz.) (white)   (Replaces: 799343)			Immediately	$ 34.39
55	261886		(13 Oz.) (coffee)		Appelez-nous	-
55	261888		(13 Oz.) (new Avocado)		Appelez-nous	-
55	261890		(13 Oz.) (golden Harvest)		Appelez-nous	-
55	350942		(13 Oz.) (primer (white))   (Replaces: 206922)				$ 80.69
55	206925		(13 Oz.) (leveler (thinner))		Appelez-nous	-
55	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
55	261837		(1 Qt.) (coffee (uncut))		Appelez-nous	-
55	261889		(1 Qt.) (new Avocado (uncut))		Appelez-nous	-
55	261891		(1 Qt.) (golden Harvest (uncut))		Appelez-nous	-
55	978883		(1 Qt.) (almond (uncut))		Appelez-nous	-
55	799351		(1 Qt.) (thinner (1 Gal.))		Appelez-nous	-
55	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
55	302177		Harness, Wiring		Appelez-nous	-
