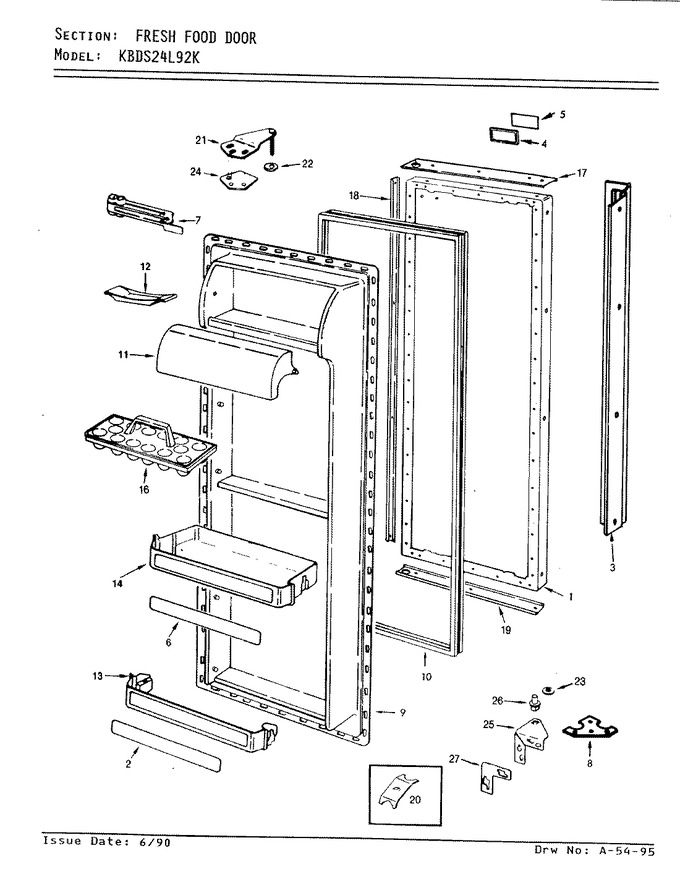

04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	68459-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	68121-53		Insert, P.o. Front (deep Stora		Appelez-nous	-
3	68658-3		Handle		Appelez-nous	-
3	65275-37		Screw, Handle		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
4	66986-5		Bezel, Nameplate		Appelez-nous	-
5	66982-10		Insert, Nameplate		Appelez-nous	-
6	68121-52		Insert, Shelf		Appelez-nous	-
7	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
7	52613-1		Insulation, Closer		Appelez-nous	-
7	52614-1		Bracket, Closer		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
8	65964-2		Tapping Plate		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
10	53712-16		Gasket		Appelez-nous	-
11	66184-380		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	65781-6		Shelf Front		Appelez-nous	-
14	65782-6		Shelf, Pick-off		Appelez-nous	-
15	WP61003045		Trim, Shelf   (Replaces: 68410-8)				$ 129.55
16	60066-1		Tray, Egg		Appelez-nous	-
17	68203-2		Trim, Perimeter (top)		Appelez-nous	-
18	68205-4		Trim, Perimeter (side)		Appelez-nous	-
19	68204-2		Trim, Perimeter (bottom)		Appelez-nous	-
20	65275-38		Screw		Appelez-nous	-
20	66723-1		Clip		Appelez-nous	-
21	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
21	53709-22		Hinge, Upper		Appelez-nous	-
21	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
22	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
23	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
24	65031-1		Shim, Upper Hinge		Appelez-nous	-
25	67714-10		Hinge, Lower		Appelez-nous	-
25	403100-801		Screw		Appelez-nous	-
26	68788-1		Hinge Pin		Appelez-nous	-
27	60626-1		Shim, Lower Hinge		Appelez-nous	-
