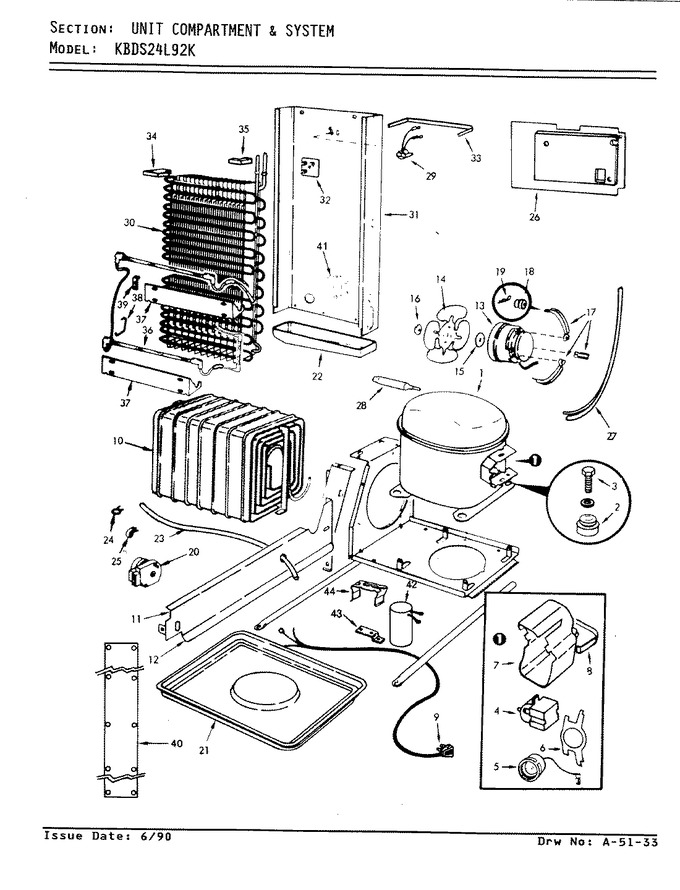

07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA1027		Compressor Kit		Appelez-nous	-
2	17245-4		Grommet, Compressor		Appelez-nous	-
3	65275-9		Screw, Compressor Mounting		Appelez-nous	-
4	9286-112		Start Relay		Appelez-nous	-
5	406003-212		Screw, Overload & Relay		Appelez-nous	-
5	53067-92		Overload		Appelez-nous	-
6	23685-1		Clip		Appelez-nous	-
7	23809-1		Cover		Appelez-nous	-
8	65886-1		Clip, Terminal Cover		Appelez-nous	-
9	52890-2		Cord, Power		Appelez-nous	-
10	60408-2		U-nut, Condenser		Appelez-nous	-
10	RA43644-1		Condenser		Appelez-nous	-
10	400062-1		Screw		Appelez-nous	-
11	29838-4		Baffle		Appelez-nous	-
12	65493-1		Baffle, Air Divider		Appelez-nous	-
12	WP488729		Screw   (Replaces: 9986-45)			Immediately	$ 7.01
13	65275-33		Screw		Appelez-nous	-
13	68481-5		Motor, Condenser Fan		Appelez-nous	-
13	29675-2		Cord		Appelez-nous	-
14	WP12587601		Blade, Condenser Fan   (Replaces: 60683-2)				$ 114.00
15	19913-2		Washer, Fan Blade		Appelez-nous	-
16	55042-1		Clip, Mounting Fan Blade		Appelez-nous	-
17	56936-1		Bracket, Fan Motor		Appelez-nous	-
18	56933-1		Grommet, Bracket		Appelez-nous	-
19	57051-1		Clip, Motor Bracket		Appelez-nous	-
20	54113-12		Automatic Timer		Appelez-nous	-
20	405007-1		Screw		Appelez-nous	-
20	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
20	29282-2		Bracket, Mounting Timer		Appelez-nous	-
21	68236-1		Pan, Drain				$ 89.75
21	45004-20		Cushion Padding, Drain Pan		Appelez-nous	-
22	53523-2		Trough, Drain		Appelez-nous	-
23	26911-25		Hose, Drain		Appelez-nous	-
24	WP596669		Clamp, Drain Hose   (Replaces: 9602-3)			Immediately	$ 7.56
25	53516-5		Clamp, Drain Hose		Appelez-nous	-
26	66339-1		Cover		Appelez-nous	-
27	RA95090-2		Heat Exchanger		Appelez-nous	-
27	26088-23		Sleeve		Appelez-nous	-
28	WPW10143759		Drier   (Replaces: 13900)			Immediately	$ 27.70
29	52085-29		Thermostat, Defrost				$ 70.25
30	RA43643-10		Evaporator		Appelez-nous	-
31	68834-2		Housing, Evaporator		Appelez-nous	-
32	55878-1		Board, Terminal		Appelez-nous	-
33	66325-18		Seal		Appelez-nous	-
34	65063-1		Seal, Styrofoam-(left)		Appelez-nous	-
35	65064-1		Seal, Styrofoam-(right)		Appelez-nous	-
36	67679-4		Heater, Defrost		Appelez-nous	-
36	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
37	29915-13		Shield, Defrost Heater		Appelez-nous	-
38	52067-1		Clip, Defrost Heater		Appelez-nous	-
39	68902-1		Wire Harness, Main		Appelez-nous	-
39	52561-1		Bracket, Heater Shield		Appelez-nous	-
39	68926-1		Wire Harness, Compressor		Appelez-nous	-
40	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
40	66381-1		Cover		Appelez-nous	-
41	67693-1		Seal Air Return		Appelez-nous	-
41	67680-1		Reflector		Appelez-nous	-
41	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
42	20325-5		Capacitor		Appelez-nous	-
43	24417-2		Bracket		Appelez-nous	-
44	14396-1		Brkt Cap		Appelez-nous	-
44	401069-1		Screw		Appelez-nous	-
