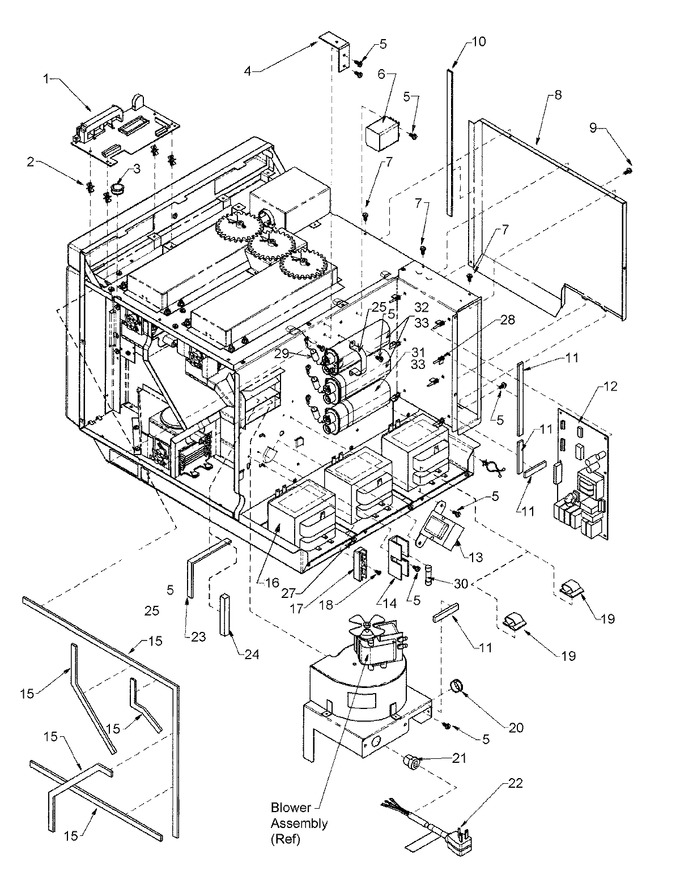

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12261714		Board, L.v. (kfc)		Appelez-nous	-
2	M0585505		Support		Appelez-nous	-
3	12164101		Grommet-rubber		Appelez-nous	-
4	10853001		Brkt, Wire Support		Appelez-nous	-
5	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
6	C8873931		Relay		Appelez-nous	-
8	R0156941		Assy, Exh Duct		Appelez-nous	-
12	10763206		Board, H.v.		Appelez-nous	-
13	C8901507		Transformer, Auto		Appelez-nous	-
14	10091101		Fuse Holder		Appelez-nous	-
16	10788611		Transformer-hv		Appelez-nous	-
17	B5677203		Terminal Block		Appelez-nous	-
19	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
20	A3293503		Snap Bushing		Appelez-nous	-
21	M0370011		Relief-strain		Appelez-nous	-
22	10098906		Power Cord		Appelez-nous	-
25	A4055405		Strap, Capacitor		Appelez-nous	-
27	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
28	M0590602		Support P-c Bd A		Appelez-nous	-
29	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
30	M0805205		Fuse- 30a				$ 10.08
31	D8547928		Capacitor-.74		Appelez-nous	-
32	59001651		Capacitor-.80   (Replaces: D8547929)				$ 43.15
NI	10902941		Wire, Jumper No.6		Appelez-nous	-
NI	12424801		Harness, Transformer		Appelez-nous	-
NI	12424701		Harness, Hi Voltage		Appelez-nous	-
NI	12329001		Harness, Oven		Appelez-nous	-
