SELECT A DIAGRAM

Diagram for 01 - Chassis Assembly Parts 1
01 - Chassis Assembly Parts 1

Diagram for 02 - Chassis Assembly Parts 2
02 - Chassis Assembly Parts 2

Diagram for 03 - Chassis Assembly Parts 3
03 - Chassis Assembly Parts 3

Diagram for 04 - Chassis Assembly Parts 4
04 - Chassis Assembly Parts 4

Diagram for 05 - Door Assembly
05 - Door Assembly

No Diagram Image Available
06 - Miscellaeous Information

Diagram for 07 - Outercase Assembly
07 - Outercase Assembly

Diagram for 08 - Touch Panel & Blower-triac Assembly
08 - Touch Panel & Blower-triac Assembly


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 R0156972 Assy, Touch Panel Appelez-nous -
2 R0156975 Assy, Touch Pnl- Side Appelez-nous -
4 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

5 10172901Q Snubber Assembly Appelez-nous -
6 B5706704 Fan Blade Special Order $ 8.23

7 10773305 Motor- Blower Appelez-nous -
8 M0253916 Screw Appelez-nous -
9 10797202 Weld, Scroll Appelez-nous -
10 C3670809 Wheel, Blower Special Order $ 33.54

11 10984004 Bracket, Blower Scroll Appelez-nous -
12 D7681501 Triac Special Order $ 44.05


    View Diagram in Separate Window     Print Icon   Print Part List

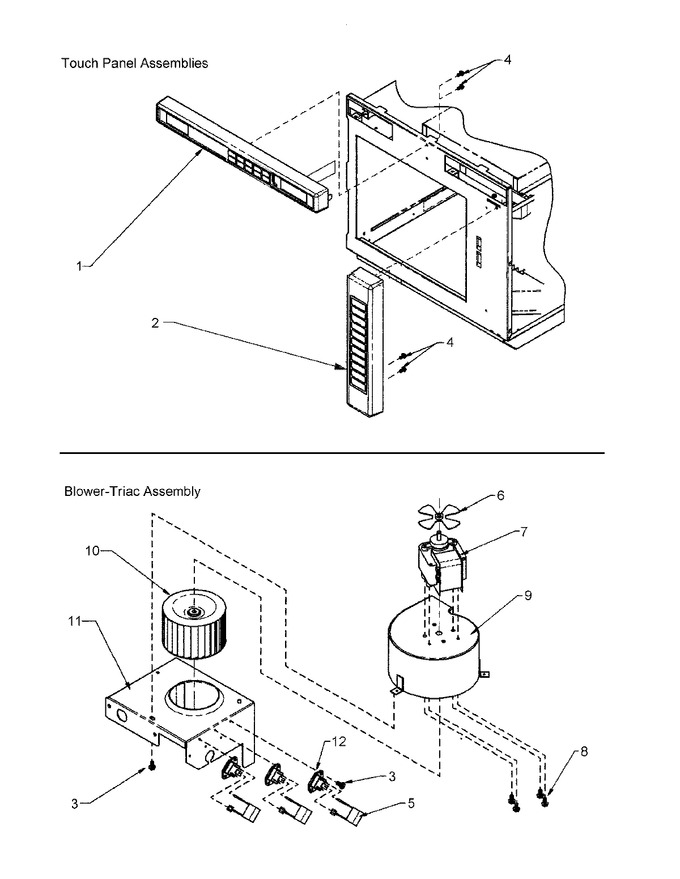

Diagram for KFC1 (BOM: P1198622M)
