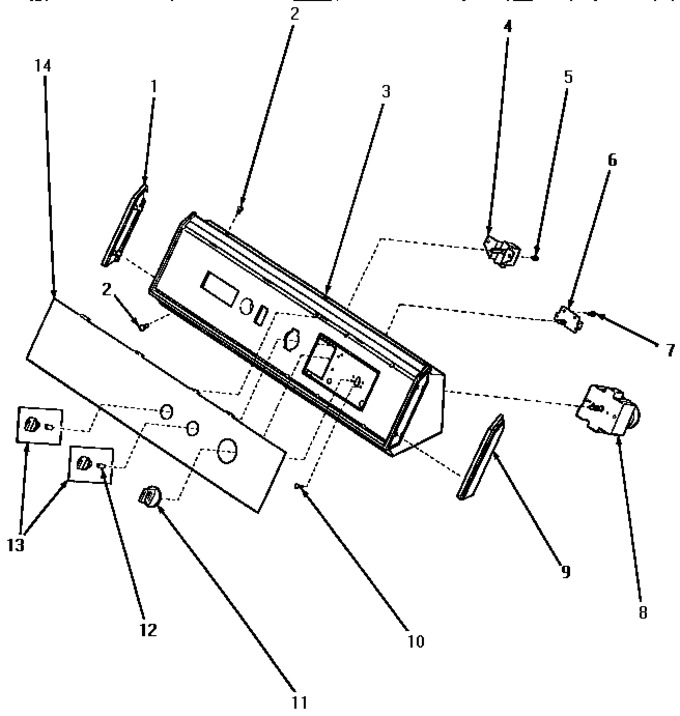

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31249		Cap,end-l.h.-chrome		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	59955		Assy,hood & Mounting P		Appelez-nous	-
4	59447		Signal,rotary		Appelez-nous	-
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	59450		Switch,rotate-to-start		Appelez-nous	-
7	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
8	61402		Timer,5 Cycle		Appelez-nous	-
9	31248		Cap,end-r.h.-chrome		Appelez-nous	-
10	WP90767		Screw   (Replaces: Y59616)			Immediately	$ 7.04
11	59791		Assy,timer Knob & Skir				$ 19.70
12	10519		Retainer		Appelez-nous	-
13	31286		Assy,knob-rotary-blk/o		Appelez-nous	-
14	Y00000000		See Note Graphics Panel -- (see Note)		Appelez-nous	-
