01 - Cabinet Top & Control Hood Rear Panel


02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Gas Valve, Igniter & Gas Conversion Kits


05 - Graphics Panel, Conrol Hood & Controls


06 - Graphics Panel, Control Hood & Controls


07 - Heater Box


08 - Loading Door, Front Panels & Access Door


09 - Motor, Exhaust Fan & Belt


10 - Power Cord


11 - Rear Blkhd, Felt Seal & Cylinder Roller


12 - Terminals

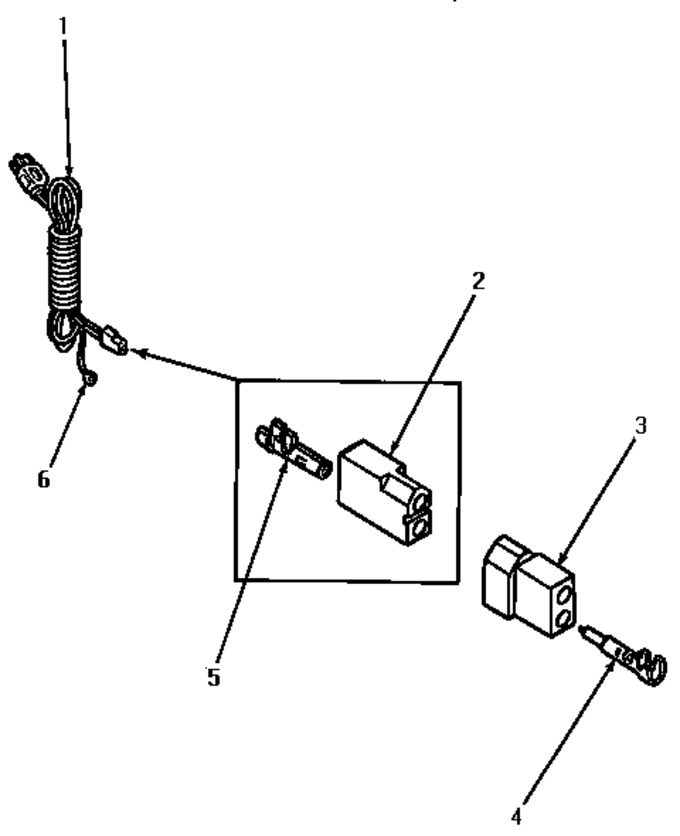

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y56222		Cord,lead-in		Appelez-nous	-
2	56265		Receptacle,2 Circuit		Appelez-nous	-
3	56266		Plug		Appelez-nous	-
4	Y00127		Terminal,pin-1/8 Male		Appelez-nous	-
5	00130		Terminal,pin-1/8 Femal				$ 7.35
6	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
