SELECT A DIAGRAM

01 - Compressor (rev 10)


02 - Compressor (rev 11)


03 - Compressor (rev 19)


04 - Controls


05 - Fountain


06 - Freezer Compartment


07 - Freezer Inner Door


08 - Freezer Outer Door


09 - Fresh Food Inner Door


10 - Fresh Food Outer Door


11 - Ice Bin


12 - Ice Maker


13 - Shelves & Accessories

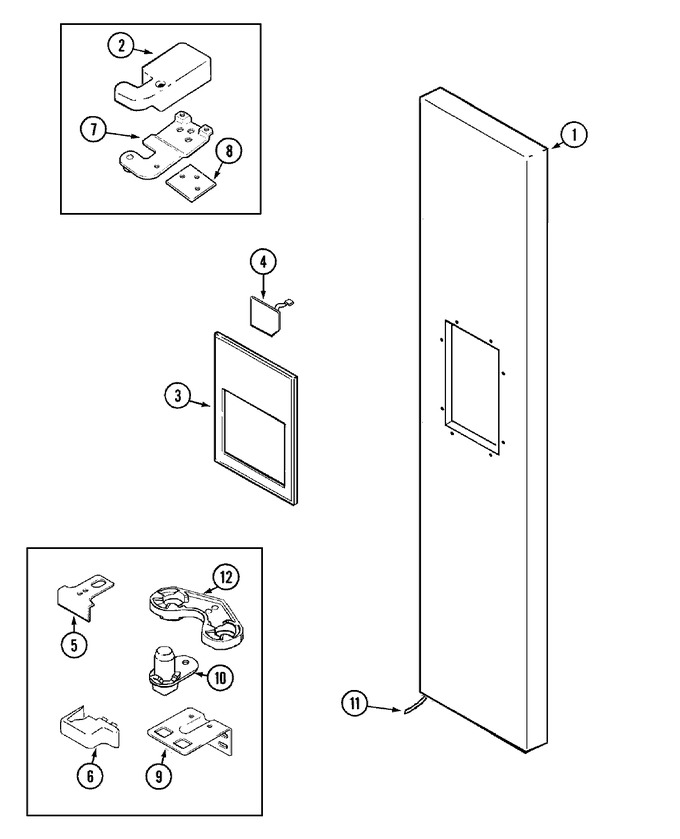

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005807		Panel, Frz. Door (blk)	12	Appelez-nous	-
1	61005769		Panel, Frz. Door (blk)	14	Appelez-nous	-
1	61004184		Panel, Frz. Door (blk)	10	Appelez-nous	-
2	12001982		Cover, Upper Hinge (blk)   (Replaces: 61004722)	10			$ 56.05
2	WP8281196		Screw, Cover   (Replaces: 61004641)	10		Immediately	$ 6.47
3	61006142		Escutcheon (blk)	14	Appelez-nous	-
3	61005572		Escutcheon (blk)	10	Appelez-nous	-
3	489392		Screw   (Replaces: 415013-35)	10			$ 12.02
4	61003422		Screw	10	Appelez-nous	-
4	61005861		Board, Ftn. Switch	14	Appelez-nous	-
4	61003421		Board, Ftn. Switch	10			$ 163.74
5	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
5	61004120		Stop, Door	10	Appelez-nous	-
6	61004178		Cover, Lower Hinge (blk)	10	Appelez-nous	-
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
7	61004194		Hinge, Upper	10	Appelez-nous	-
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	61004713		Hinge, Lower (blk)	10	Appelez-nous	-
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	61004569		Tubing, Fountain	10	Appelez-nous	-
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61001614)	10		Immediately	$ 26.15
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
12	61003647		Closer, Door (natural)	10			$ 10.19
13	61005726		Closer, Door (w/cup)	12			$ 27.14
13	W10856122		Screw   (Replaces: 61002180)	12			$ 6.98

    View Diagram in Separate Window       Print Part List
