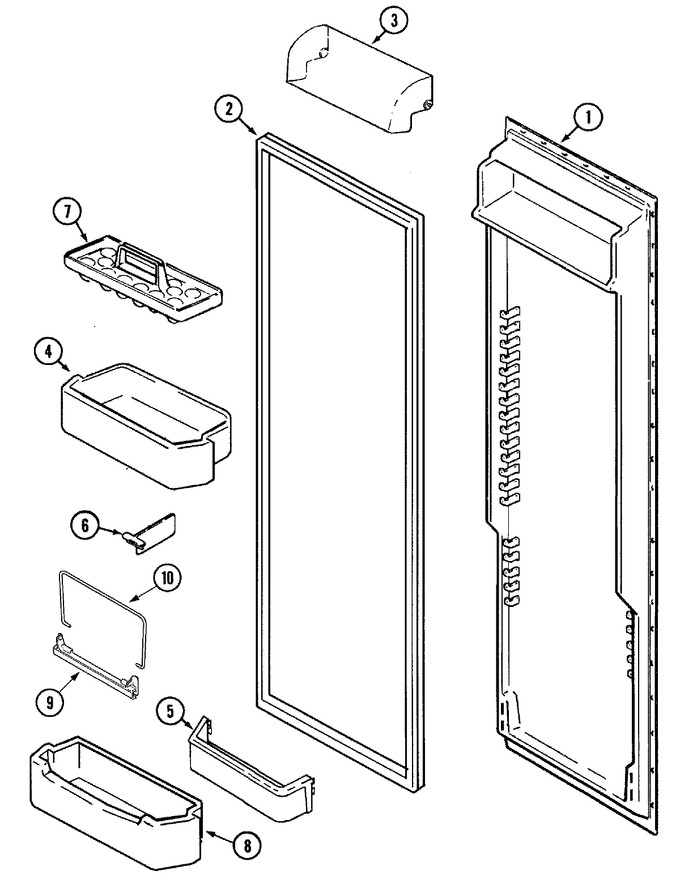

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005418		Liner, F.f. Door	10	Appelez-nous	-
1	61005388		Screw	10			$ 11.43
1	61004783		Insert, Liner Support (sides)	10	Appelez-nous	-
1	61004123		Insert, Liner Support(top/btm)	10	Appelez-nous	-
2	WP61005944		Seal, F.f. Door (blk)   (Replaces: 61003904)	10			$ 288.10
3	61004426		Door, Dairy	10	Appelez-nous	-
4	61005209		Shelf, Pick-off	10	Appelez-nous	-
5	61004350		Front, Pick-off	10	Appelez-nous	-
6	61002274		Organizer, Shelf	10	Appelez-nous	-
7	60066-1		Tray, Egg	10	Appelez-nous	-
8	61004351		Shelf, Pick-off	10	Appelez-nous	-
9	61005106		Retainer, Bottle	10	Appelez-nous	-
10	61004926		Retainer, Wire	10	Appelez-nous	-
