01 - Cabinet Top & Control Hood Rear Panel

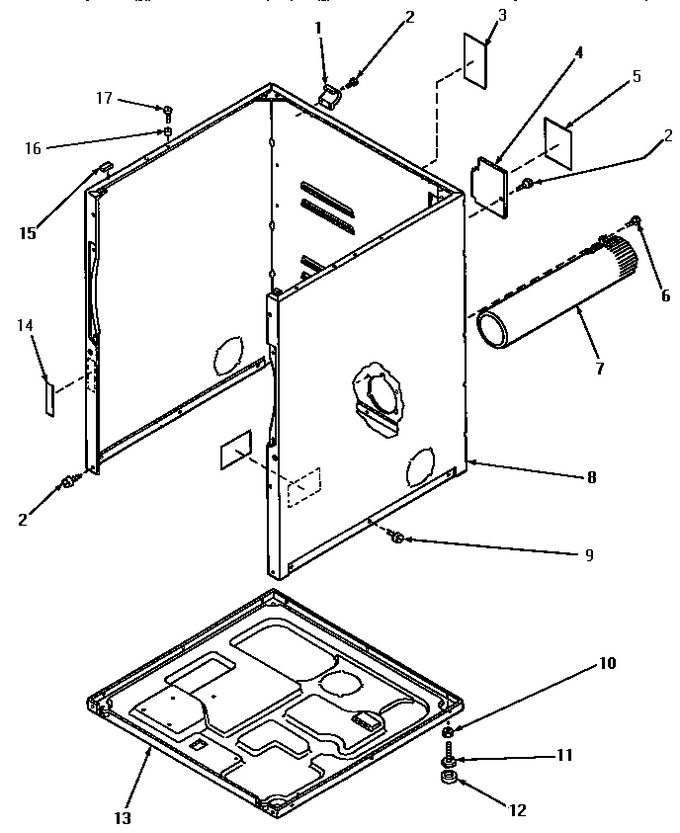

02 - Cabinet, Exhaust Duct & Base


03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


04 - Gas Valve, Igniter & Gas Conversion Kits


05 - Graphics Panel, Conrol Hood & Controls


06 - Graphics Panel, Control Hood & Controls


07 - Heater Box


08 - Loading Door, Front Panels & Access Door


09 - Motor, Exhaust Fan & Belt


10 - Power Cord


11 - Rear Blkhd, Felt Seal & Cylinder Roller


12 - Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60826		Hinge, Top		Appelez-nous	-
2	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
3	61503		Sticker		Appelez-nous	-
4	60821		Acess Cover				$ 1.98
5	58871		Sticker,safety-disconn		Appelez-nous	-
6	56392		Screw,8-18 X 3/8 Tappi		Appelez-nous	-
7	56118		Assy, Exhaust Duct		Appelez-nous	-
8	60813H		Assy,dryer Cabinet		Appelez-nous	-
8	60813W		Cabinet, White		Appelez-nous	-
8	60813L		Xxxassy,dryer Cabinet Xreplace		Appelez-nous	-
9	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
10	WP62739		Nut,hex 3/8-16   (Replaces: 20274)				$ 6.85
11	WP233550		Foot,adjustable   (Replaces: Y52696)				$ 7.16
12	70282		Foot,rubber		Appelez-nous	-
13	60811		Assy,base-complete		Appelez-nous	-
14	28328		Sticker		Appelez-nous	-
15	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
16	56079		Locater, Panel			Immediately	$ 6.95
17	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
