| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
39733 |
|
Screw, Tapping (Replaces: 32671) |
|
|
|
$ 6.95 |
|
|
| 2 |
WP22001650 |
 |
Hold-down Clip (Replaces: 28835) |
|
|
Immediately |
$ 7.34 |
|
|
| 3 |
W10169313 |
 |
Door Switch (Replaces: 56052) |
|
|
Immediately |
$ 29.18 |
|
|
| 4 |
134305 |
|
Front Panel Seal (Replaces: 56091) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
Sub. To 807429P |
|
Nut K (Replaces: 51236) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
56534 |
|
Barrel,support |
|
Appelez-nous
|
- |
|
|
|
| 7 |
60853W |
|
Front Panel, White |
|
Appelez-nous
|
- |
|
|
|
| 7 |
60853L |
|
Front Panel, Almond |
|
Appelez-nous
|
- |
|
|
|
| 7 |
60853H |
|
Front Panel, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 8 |
WP27001200 |
 |
Screw (Replaces: 58637) |
|
|
|
$ 6.91 |
|
|
| 9 |
21147 |
|
Washer,11/64idx1/16odx |
|
Appelez-nous
|
- |
|
|
|
| 10 |
Y57444 |
|
Screw,8ab X 1 Truss Hd |
|
Appelez-nous
|
- |
|
|
|
| 11 |
Sub. To D512973 |
|
Screw, 8b-16x5/8 Tap (Replaces: 52864) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
22649 |
|
Screw,8-32 X 13/32 Fl |
|
Appelez-nous
|
- |
|
|
|
| 13 |
60885W |
|
Door Assembly, White |
|
Appelez-nous
|
- |
|
|
|
| 13 |
60885L |
|
Door Assembly, Almond |
|
Appelez-nous
|
- |
|
|
|
| 13 |
60885H |
|
Assy,door |
|
Appelez-nous
|
- |
|
|
|
| 14 |
60770L |
|
Outer Door Panel, Almond |
|
Appelez-nous
|
- |
|
|
|
| 14 |
60770W |
|
Outer Door Panel, White |
|
Appelez-nous
|
- |
|
|
|
| 14 |
60770H |
|
Outer Door Panel, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 15 |
56045 |
|
Hinge (dryer) |
|
|
|
$ 9.33 |
|
|
| 16 |
54068P |
|
Pull,door |
|
Appelez-nous
|
- |
|
|
|
| 17 |
60668H |
|
Inner Door Panel, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 17 |
60668L |
|
Inner Door Panel, Almond |
|
Appelez-nous
|
- |
|
|
|
| 17 |
60668W |
|
Inner Door Panle, White |
|
Appelez-nous
|
- |
|
|
|
| 18 |
LA-1003 |
 |
Strike, Door (metal) (Replaces: 54661) |
|
|
Immediately |
$ 24.51 |
|
|
| 19 |
61379P |
 |
Door Seal (Replaces: 61379) |
|
|
|
$ 39.77 |
|
|
| 20 |
23407 |
|
Nut,speed-8a Tinn C15 |
|
Appelez-nous
|
- |
|
|
|
| 21 |
52150 |
|
Screw, Thermostat |
|
Appelez-nous
|
- |
|
|
|
| 22 |
56542 |
|
Sticker |
|
Appelez-nous
|
- |
|
|
|
| 23 |
60795L |
|
Door,access |
|
Appelez-nous
|
- |
|
|
|
| 23 |
60795W |
|
Door,access |
|
Appelez-nous
|
- |
|
|
|
| 23 |
60795A |
|
Access Door, Harvest Gold |
|
Appelez-nous
|
- |
|
|
|
| 24 |
61503 |
|
Sticker |
|
Appelez-nous
|
- |
|
|
|
| 25 |
LA-1003 |
|
Catch, Door (Replaces: 54660) |
|
|
Immediately |
$ 24.51 |
|
|
| 26 |
55481 |
|
Sticker,caution |
|
Appelez-nous
|
- |
|
|
|
| 27 |
55480 |
|
Sticker |
|
Appelez-nous
|
- |
|
|
|
| 28 |
56079 |
 |
Locater, Panel |
|
|
Immediately |
$ 6.95 |
|
|

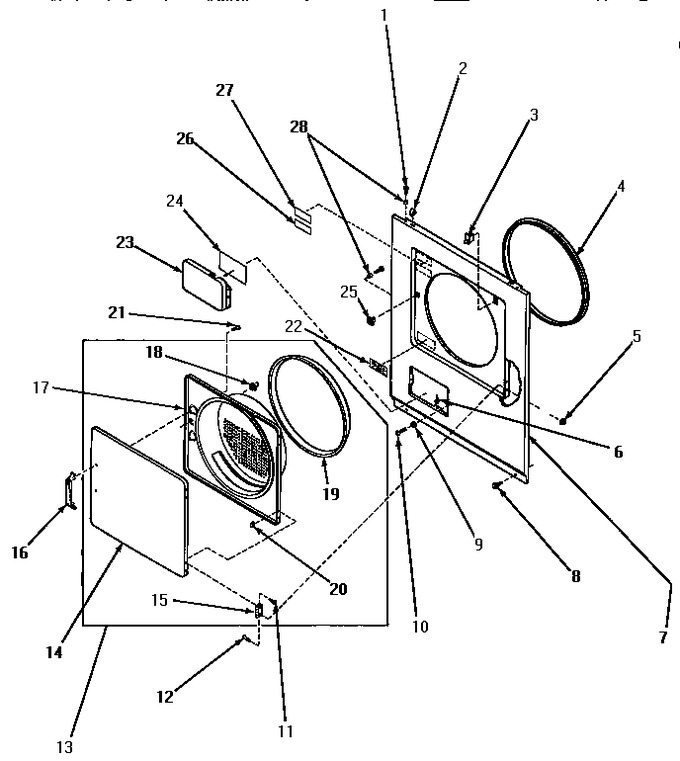

View Diagram in Separate Window
