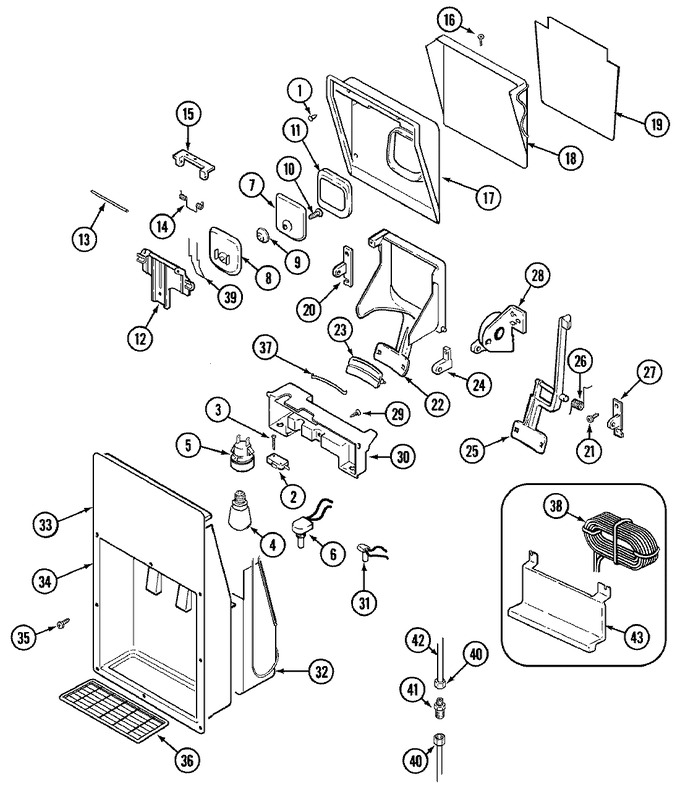

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 28272-6 | Bumper, Door | 10 |
|
- | ||||
| 2 | 55440-2 | Switch, Ice & Water | 10 |
|
$ 11.94 | ||||
| 3 | 405071-1 | Screw | 10 |
|
- | ||||
| 4 | 63179-4 | Bulb, Light | 10 |
|
- | ||||
| 5 | 70458-1 | Receptacle, Bulb | 10 |
|
- | ||||
| 5 | 70456-1 | Clip | 10 |
|
- | ||||
| 6 | 68491-1 | Wire Harness, Switch | 10 |
|
- | ||||
| 6 | 69832-7 | Switch, Light (w/nut) | 10 |
|
- | ||||
| 6 | 27116-5 | Nut, Wire | 10 |
|
- | ||||
| 7 | 68557-1 | Insulation, Ice Door | 10 |
|
- | ||||
| 8 | 68957-2 | Door, Ice | 10 |
|
$ 6.21 | ||||
| 8 | 405023-35 | Screw | 10 |
|
- | ||||
| 9 | 68566-1 | Retainer | 10 |
|
- | ||||
| 10 | 405116-35 | Screw | 10 |
|
- | ||||
| 11 | 69867-1 | Seal, Ice Door | 10 |
|
$ 5.70 | ||||
| 12 | 68563-2 | Strike, Ice Door | 10 |
|
- | ||||
| 13 | 68564-1 | Shaft | 10 |
|
- | ||||
| 14 | 68765-1 | Spring | 10 |
|
- | ||||
| 15 | 68958-1 | Bracket, Pivot | 10 |
|
- | ||||
| 16 | 405023-103 | Screw | 10 |
|
- | ||||
| 17 | WP681249 | Screw (Replaces: 415014-35) | 10 |
|
Immediately | $ 7.07 | |||
| 17 | 68567-2 | Back, Fountain (wht) | 10 |
|
- | ||||
| 18 | 69132-1 | Heater, Fountain Back | 10 |
|
- | ||||
| 19 | 68714-1 | Insulation, Foil | 10 |
|
- | ||||
| 20 | 68627-1 | Pivot, Actuator (lt) | 10 |
|
- | ||||
| 21 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 22 | 69112-2 | Paddle, Ice (wht) | 10 |
|
- | ||||
| 23 | 69174-2 | Pad, Paddle (wht) | 10 |
|
- | ||||
| 24 | 68764-1 | Pivot, Actuator (center) | 10 |
|
- | ||||
| 25 | 68558-2 | Paddle, Water (wht) | 10 |
|
- | ||||
| 26 | 68767-1 | Spring, Paddle Return | 10 |
|
- | ||||
| 27 | 68628-1 | Pivot, Actuator (rt)---na | 10 |
|
- | ||||
| 28 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 28 | 69275-1 | Motor, Interia----na | 10 |
|
- | ||||
| 29 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 30 | 70176-1 | Nut | 10 |
|
- | ||||
| 30 | 68626-2 | Bracket, Switch | 10 |
|
- | ||||
| 31 | 68568-2 | Plunger | 10 |
|
- | ||||
| 32 | 68936-2 | Heater, Fountain | 10 |
|
- | ||||
| 33 | 68955-1 | Front, Fountain | 10 |
|
- | ||||
| 34 | 68954-2 | Fountain (wht) | 10 |
|
- | ||||
| 35 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 36 | 68631-1 | Grill | 10 |
|
- | ||||
| 37 | 68763-1 | Trim, Paddle Pad | 10 |
|
$ 5.04 | ||||
| 38 | 67616-1 | Coil, Water | 10 |
|
- | ||||
| 38 | WP67006908 | Screw (Replaces: 400022-1) | 10 |
|
Immediately | $ 7.16 | |||
| 39 | 69868-1 | Spring, Ice Door | 10 |
|
- | ||||
| 40 | 69583-2 | Nut, Compression (5/16``) | 10 |
|
- | ||||
| 40 | 67610-1 | Nut, Compression (3/8``) | 10 |
|
- | ||||
| 41 | 69316-1 | Union, Reducing (3/8``- 5/16``) | 10 |
|
- | ||||
| 42 | WPW10426709 | Tubing, Valve To Coil (Replaces: 67187-5) | 10 |
|
$ 126.83 | ||||
| 42 | WPW10426709 | Tubing Plastic-door Panel (Replaces: 67187-1) | 10 |
|
$ 126.83 | ||||
| 43 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 43 | 68837-1 | Cover, Water Coil | 10 |
|
- |
