Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 70027-2 Ring, Drive 10 Appelez-nous -
2 67830-1 Bin, Ice 10 Appelez-nous -
3 67833-1 Auger 10 Appelez-nous -
4 67172-2 Bearing 10 Appelez-nous -
5 67829-1 Ice Dam 10 Appelez-nous -
6 67834-2 Washer, Thrust 10 Appelez-nous -
7 492007-703 Pin, Cotter 10 Appelez-nous -
8 69875-22 Front, Ice Bin 10 Appelez-nous -
8 489392 Screw   (Replaces: 415013-35) 10 Special Order $ 12.02

9 WP488234 Screw   (Replaces: 406026-103) 10 Special Order $ 6.07

10 WP63052-2 Yoke, Ice Dispenser   (Replaces: 63052-2) 10 In-Stock Immediately $ 62.02

11 65186-2 Motor, Auger 10 Appelez-nous -
11 70139-1 Wire Harness, Auger Motor 10 Appelez-nous -
12 69920-15 Door, Ice Access 10 Appelez-nous -
13 67906-1 Pin, Ice Door 10 Appelez-nous -
14 28272-6 Bumper, Door 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

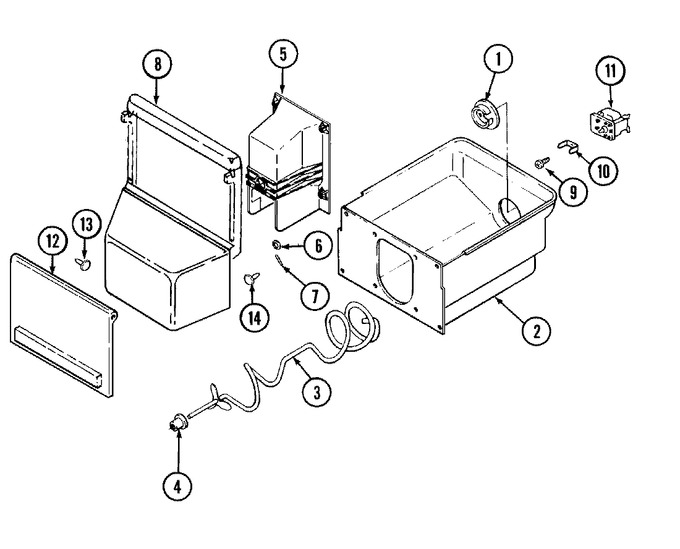

Diagram for KG66U50
