View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel

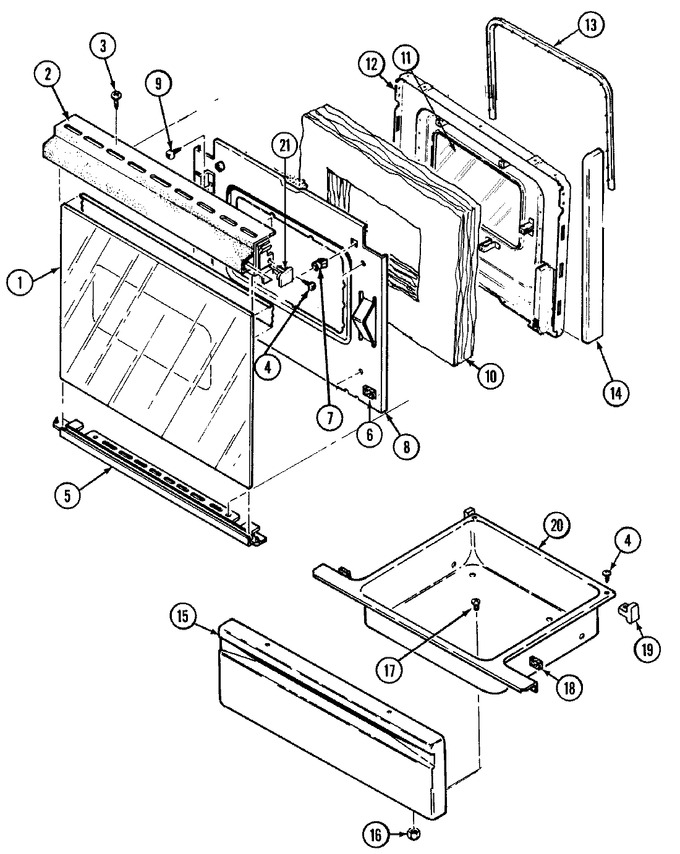

03 - Door/drawer (l3527xrb)
04 - Oven
05 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7902P321-60 | Glass, Door (blk) | 10 |
|
- | ||||
| 2 | 7701P103-60 | Handle, Door (blk) | 10 |
|
- | ||||
| 3 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 4 | 7101P329-60 | Screw | 10 |
|
- | ||||
| 5 | 7744P105-60 | Trim, Bottom (blk)----na | 10 |
|
- | ||||
| 6 | 8010P085-60 | Spacer, Rubber | 10 |
|
- | ||||
| 7 | 8010P075-60 | Spacer | 10 |
|
- | ||||
| 8 | 3601F232-45 | Baffle, Door | 10 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 4804F033-60 | Insulation, Door | 10 |
|
- | ||||
| 11 | 7902P319-60 | Glass, Door (inner)----na | 10 |
|
- | ||||
| 12 | 2402W203-19 | Lining, Door | 10 |
|
- | ||||
| 13 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 10 |
|
Immediately | $ 56.83 | |||
| 14 | 7744P055-60 | End Cap, Oven Door (blk) | 10 |
|
- | ||||
| 15 | 2416F039-65 | Panel, Drawer (blk) | 10 |
|
- | ||||
| 16 | WPW10131078 | Nut, Lock (Replaces: 7103P085-60) | 10 |
|
$ 4.00 | ||||
| 17 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 18 | WP854334 | Spacer, Rubber (Replaces: 8010P086-60) | 10 |
|
$ 11.95 | ||||
| 19 | 8004P026-60 | Support, Drawer (rear) | 10 |
|
$ 9.29 | ||||
| 20 | 3405F015-80 | Drawer, Storage | 10 |
|
- | ||||
| 21 | 7744P076-60 | End Cap (lt) | 10 |
|
- | ||||
| 21 | 7744P075-60 | End Cap (rt) | 10 |
|
- |
