01 - Body
02 - Control Panel
03 - Door/drawer (l3527xrb)
04 - Oven
05 - Top Assy.
New Model Search:

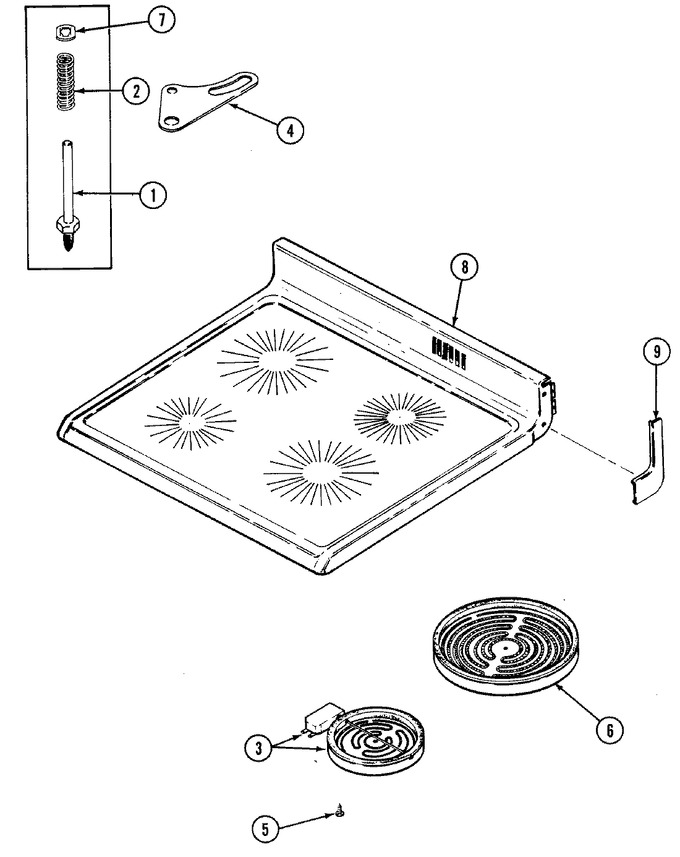

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7113P013-60 | Pin, Element | 10 |
|
- | ||||
| 2 | 7803P066-60 | Spring, Element Support | 10 |
|
- | ||||
| 3 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 10 |
|
Immediately | $ 309.01 | |||
| 4 | 3819F013-45 | Clip, Element | 10 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7101P076-60) | 10 |
|
$ 6.95 | ||||
| 6 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 10 |
|
Immediately | $ 316.13 | |||
| 7 | 7112P091-60 | Clip, Retainer | 10 |
|
- | ||||
| 8 | 5706S076-09 | Top Assy. (blk Glass/blk Frm) | 10 |
|
- | ||||
| 8 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 10 |
|
Immediately | $ 4.86 | |||
| 9 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 9 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 10 | 8016P013-60 | Glide | 10 |
|
- | ||||
| 10 | 8270P095-60 | Tape, Double Sided | 10 |
|
- | ||||
| 10 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- |
