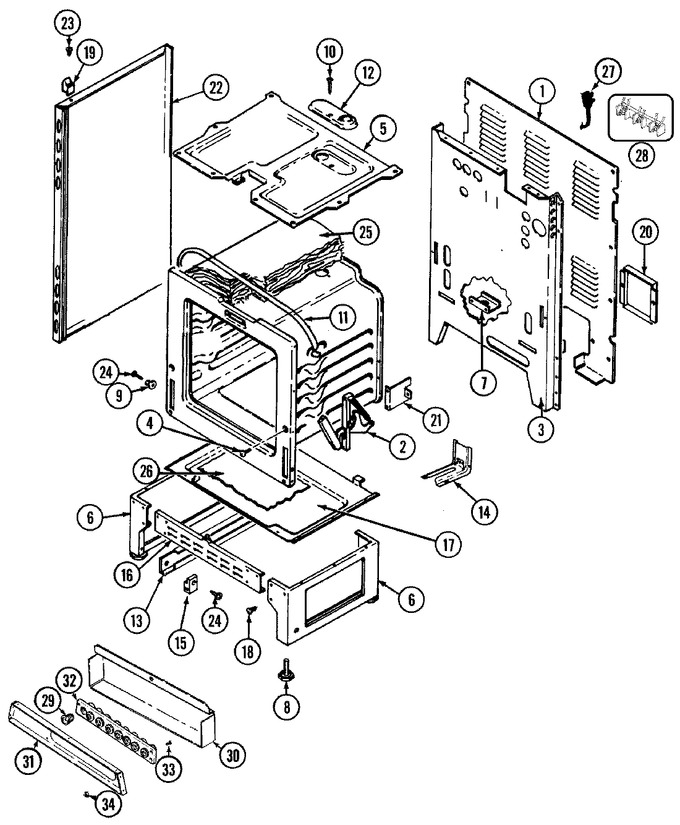

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven
05 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F381-51 | Cover, Main Back Wire | 10 |
|
- | ||||
| 2 | 7106P055-60 | Hinge | 10 |
|
$ 52.22 | ||||
| 3 | 4002F189-80 | Back, Main | 10 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 5 | 4011F208-19 | Box, Burner | 10 |
|
- | ||||
| 6 | 4020W013-80 | Pedestal (sides) | 10 |
|
- | ||||
| 7 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 8 | 7101P306-60 | Leg, Leveling | 10 |
|
- | ||||
| 9 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 10 | 7101P103-60 | Screw | 10 |
|
- | ||||
| 11 | 4820F001-59 | Strap, Retainer | 10 |
|
- | ||||
| 12 | 4005F432-45 | Cover, Vent | 10 |
|
- | ||||
| 13 | 3406F028-51 | Runner, Drawer | 10 |
|
- | ||||
| 14 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 10 |
|
Immediately | $ 4.69 | |||
| 14 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 10 |
|
$ 26.33 | ||||
| 15 | 8004P025-60 | Support, Drawer | 10 |
|
- | ||||
| 16 | 4020F001-80 | Pedestal, Front/rear | 10 |
|
- | ||||
| 17 | 3804F112-47 | Retainer, Insulation | 10 |
|
- | ||||
| 18 | W11233072 | Screw (Replaces: 7101P290-60) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 8010P087-60 | Spacer, Main Top (lt) | 10 |
|
- | ||||
| 19 | 8010P088-60 | Spacer, Main Top (rt) | 10 |
|
- | ||||
| 20 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 21 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 22 | 2618F110-74 | Panel, Side (alm) | 10 |
|
- | ||||
| 23 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 24 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 25 | 4804F044-60 | Insulation, Oven Wrap | 10 |
|
- | ||||
| 25 | 4804F039-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 26 | 8312P058-60 | Foil, Insulation Retainer | 10 |
|
- | ||||
| 27 | 7402P050-60 | Cord, Power | 10 |
|
- | ||||
| 28 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 28 | W11684512 | Screw (10abx1.0-zn) (Replaces: 7101P060-60) | 10 |
|
$ 12.69 | ||||
| 29 | 7416P005-60 | Fuse, 125v 20a | 10 |
|
- | ||||
| 29 | 7416P006-60 | Fuse, 125v 15a | 10 |
|
- | ||||
| 30 | 4005F445-51 | Cover, Fuse Block | 10 |
|
- | ||||
| 30 | WP179051 | Screw (Replaces: 7101P263-60) | 10 |
|
Immediately | $ 7.16 | |||
| 31 | 3801F309-80 | Bracket, Fuse | 10 |
|
- | ||||
| 32 | 7401A032-60 | Block, Fuse Assy. | 10 |
|
- | ||||
| 33 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 34 | M0282009 | Nut (Replaces: 7103P064-60) | 10 |
|
$ 12.06 | ||||
| 35 | 5175D060-60 | Harness, Fuse To Control Panel | 10 |
|
- |
