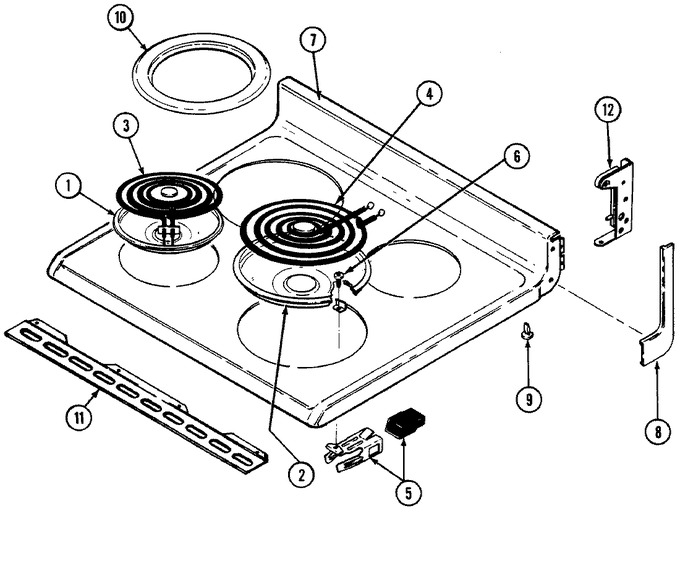

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7725P036-60 | Bowl, Drip (6``) (blk) | 10 |
|
- | ||||
| 2 | WP74001479 | Bowl, Drip (8``-blk) (Replaces: 7725P037-60) | 10 |
|
$ 17.35 | ||||
| 3 | WPW10259868 | Element (6``) (Replaces: Y04000056) | 10 |
|
Immediately | $ 112.28 | |||
| 4 | WP12001560 | Element (8``) (Replaces: Y04000055) | 10 |
|
$ 172.17 | ||||
| 5 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 28.45 | |||
| 6 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 6.95 | ||||
| 7 | 2002W099-84 | Top, Main (alm) | 10 |
|
- | ||||
| 8 | 7746P030-60 | End Cap (rt-blk) | 10 |
|
$ 26.16 | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 10 |
|
$ 7.68 | ||||
| 8 | 7746P031-60 | End Cap (lt-blk) | 10 |
|
$ 26.25 | ||||
| 9 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 10 | 7744P055-60 | End Cap, Oven Door (blk) | 10 |
|
- | ||||
| 10 | 19950051A | Ring, Trim (8``) (Replaces: 7744P054-60) | 10 |
|
$ 14.92 | ||||
| 11 | 3801F305-80 | Bracket, Main Top | 10 |
|
- | ||||
| 12 | 3807F453-51 | Support, Main Top (rt) | 10 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 3807F454-51 | Support, Main Top (lt) | 10 |
|
- | ||||
| 13 | 5175D049-60 | Harness, Panel To Top | 10 |
|
- | ||||
| 13 | 8114P348-60 | Cover, Hinge Support | 10 |
|
- |
