SELECT A DIAGRAM

Diagram for 01 - Top And Cabinet, Literature
01 - Top And Cabinet, Literature

Diagram for 02 - Controls And Rear Panel
02 - Controls And Rear Panel

Diagram for 03 - Agitator, Basket And Tub
03 - Agitator, Basket And Tub

Diagram for 04 - Brake, Clutch, Gearcase, Motor And Pump
04 - Brake, Clutch, Gearcase, Motor And Pump

Diagram for 05 - Machine Base
05 - Machine Base

Diagram for 06 - Wiring Harness
06 - Wiring Harness

Diagram for 07 - Water System
07 - Water System

Diagram for 08 - Brake And Drive Tube
08 - Brake And Drive Tube

Diagram for 09 - Gearcase
09 - Gearcase

Diagram for 10 - Miscellaneous, Optional
10 - Miscellaneous, Optional


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT3954572 Literature Parts (wiring Diagram) Appelez-nous -
1 LIT3954536 Literature Parts (energy Guide) Appelez-nous -
1 LIT3954819 Literature Parts (french) Appelez-nous -
1 LIT3953950 Literature Parts (english) Appelez-nous -
1 LIT3951578 Literature Parts (french Use & Care Guide) Appelez-nous -
1 LIT3952895 Literature Parts (installation Instructions) Appelez-nous -
1 LIT3952817 Literature Parts (english) Appelez-nous -
2 8271378 Top Appelez-nous -
3 WP62750 Spacer, Cabinet To Top (4)   (Replaces: 62750) In-Stock Immediately $ 6.92

4 WP357213 Nut, Push-in (2)   (Replaces: 357213) Special Order $ 6.65

5 8271944 Cabinet Appelez-nous -
6 WP62780 Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780) In-Stock Immediately $ 7.02

7 3950426 Shield, D Ring Appelez-nous -
8 WP3356311 Screw & Washer, Lid Switch (2)   (Replaces: 3356311) Special Order $ 6.98

9 3349654 Cabinet-sound Damper Appelez-nous -
10 3953152 Shield, Pressure Switch Appelez-nous -
11 3949247V Switch, Lid   (Replaces: 3949237) In-Stock Immediately $ 45.78

13 WPW10119828 Screw, Lid Hinge Mounting (4)   (Replaces: 3351355) In-Stock Immediately $ 6.47

15 WP91770 Hinge, Lid (l.h.)   (Replaces: 91770) Special Order $ 24.71

16 WP54583 Hinge, Lid (r.h.)   (Replaces: 54583) Special Order $ 26.60

17 19119 Bumper, Lid Hinge Special Order $ 5.75

18 WP21258 Bearing, Lid Hinge (2)   (Replaces: 21258) In-Stock Immediately $ 6.87

19 3361408 Lid Appelez-nous -
20 WP358684 Strike, Lid Switch   (Replaces: 358684) In-Stock Immediately $ 6.90

22 WP9724509 Bumper, Lid (2)   (Replaces: 9724509) In-Stock Immediately $ 7.14

28 WP3390631 Screw, 10-16 X 3/8   (Replaces: 62863) Special Order $ 7.04

31 WP90016 Clip, Harness   (Replaces: 90016) Special Order $ 10.19

32 8274441 Dispenser, Bleach Appelez-nous -
LIT4313896 Do-it-yourself Manual (washer) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

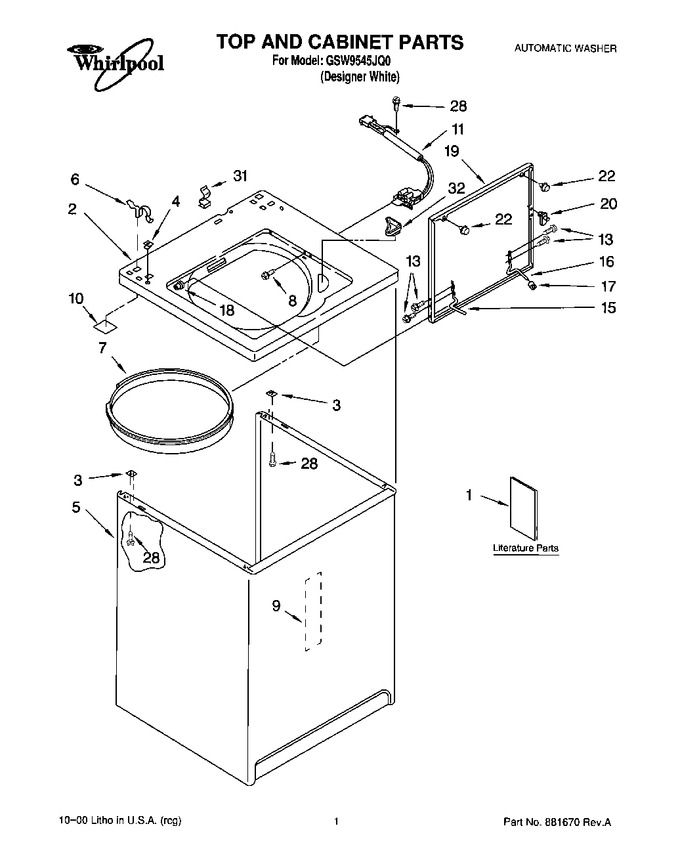

Diagram for GSW9545JQ0
