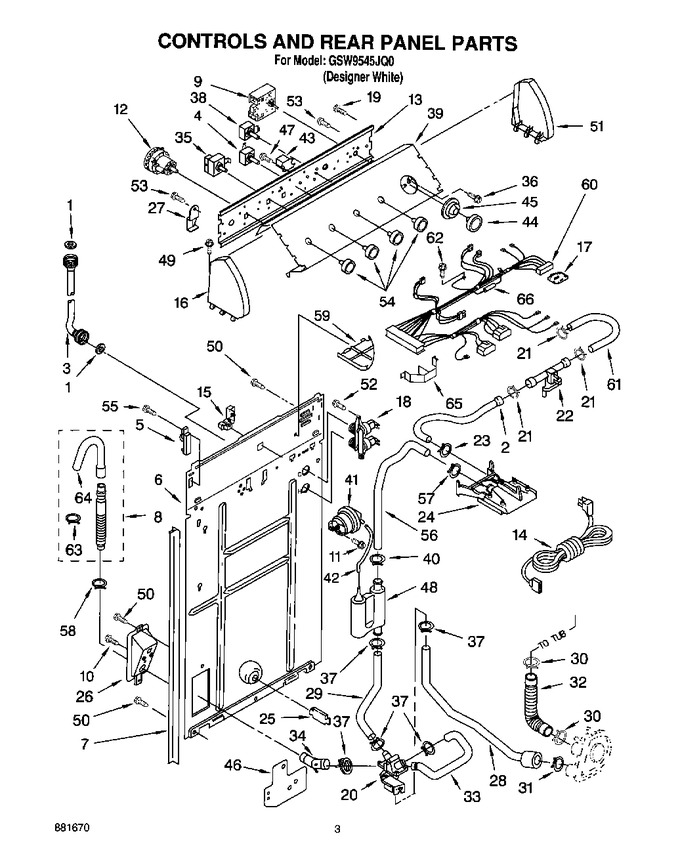

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 6.93 | |||||
| 2 | WP3349365 | Hose, Sensor Upper (Replaces: 3953069) |
|
$ 19.21 | |||||
| 3 | WP89503 | Hose, Water Inlet ((red Coupler)) (Replaces: 3949369) |
|
Immediately | $ 21.68 | ||||
| 3 | WP89503 | Hose, Water Inlet ((blue Coupler)) (Replaces: 3949368) |
|
Immediately | $ 21.68 | ||||
| 4 | 3950359 | Switch, Rotary |
|
- | |||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3948940 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 23.63 | |||||
| 8 | 285664 | Hose, Rubber Drain (Replaces: 3951609) |
|
Immediately | $ 33.20 | ||||
| 9 | 3954569 | Timer, Control (60 Hz.) (motor Not A Service Part) |
|
- | |||||
| 10 | 3352299 | Screw |
|
- | |||||
| 11 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 6.75 | |||||
| 12 | W10335056 | Switch, Water Level (Replaces: 3366846) |
|
Immediately | $ 82.66 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 104.57 | |||||
| 14 | W10820044 | Cord, Power (Replaces: 3948063) |
|
$ 128.46 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 17 | 3407125 | Control, Etc |
|
- | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3952164) |
|
Immediately | $ 49.57 | ||||
| 19 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 90864) |
|
Immediately | $ 6.26 | ||||
| 20 | 3358559 | Valve, Two-way |
|
$ 122.77 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 7.56 | ||||
| 22 | 3352282 | Sensor-etc-inline |
|
$ 66.68 | |||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.56 | ||||
| 24 | 3358551 | Break, Vacuum |
|
$ 32.74 | |||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 17.01 | ||||
| 26 | 3976335 | Bracket, Valve Mounting |
|
- | |||||
| 27 | 8283343 | Retainer, Harness |
|
- | |||||
| 28 | 8314849 | Hose, Pump To Two-way Valve |
|
- | |||||
| 29 | 3358563 | Hose/two-way Valve To Air Dome |
|
$ 9.74 | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.03 | ||||
| 31 | WP356138 | Clamp, Hose (Replaces: 3366912) |
|
Immediately | $ 7.67 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 3951449) |
|
Immediately | $ 24.01 | ||||
| 33 | 3358564 | Hose-two Way Valve/ To Drain |
|
$ 10.22 | |||||
| 34 | 3976337 | Connector, Hose |
|
- | |||||
| 35 | WPW10168256 | Switch, Rotary (temp. Switch) (Replaces: 661612) |
|
Immediately | $ 115.93 | ||||
| 36 | WP3400064 | Screw, Timer Mounting (2) (Replaces: 3400064) |
|
$ 6.26 | |||||
| 37 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.55 | ||||
| 38 | 3952825 | Switch, Rotary |
|
- | |||||
| 39 | 3954221 | Panel, Console |
|
- | |||||
| 40 | 3363365 | Clamp, Hose |
|
$ 9.68 | |||||
| 41 | 3358570 | Switch, Pressure |
|
$ 52.87 | |||||
| 42 | WP353244 | Hose, Pressure Switch (Replaces: 3347781) |
|
Immediately | $ 53.94 | ||||
| 43 | 697811 | Relay, Cancel |
|
- | |||||
| 44 | WP3364293 | Knob, Timer (Replaces: 8274290) |
|
Immediately | $ 53.51 | ||||
| 45 | WP3957849 | Dial, Timer (Replaces: 8271351) |
|
$ 41.20 | |||||
| 46 | 3948552 | Shield, Valve |
|
$ 7.81 | |||||
| 47 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3388228) |
|
$ 6.26 | |||||
| 48 | 3948812 | Air Dome |
|
- | |||||
| 49 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 7.30 | |||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.04 | |||||
| 51 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 52 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.07 | ||||
| 53 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 54 | WP3957799 | Knob, Control (Replaces: 8271339) |
|
Immediately | $ 47.20 | ||||
| 55 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 56 | 3358555 | Hose, Air-dome To Vacuum Break |
|
- | |||||
| 57 | 3363365 | Clamp, Hose (Replaces: 3358557) |
|
$ 9.68 | |||||
| 58 | WP285655 | Clamp, Drain Hose (Replaces: 370445) |
|
Immediately | $ 7.55 | ||||
| 59 | 3348424 | Sheild, Suds |
|
- | |||||
| 60 | 3954061 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- | |||||
| 61 | WP3357319 | Hose, Vacuum Break (Replaces: 3357319) |
|
$ 24.49 | |||||
| 62 | WP3351614 | Screw, Ground 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 6.26 | ||||
| 63 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 10.38 | |||||
| 64 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 83.88 | |||||
| 65 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 66 | 8317387 | Fuse (in Harness) |
|
- |
