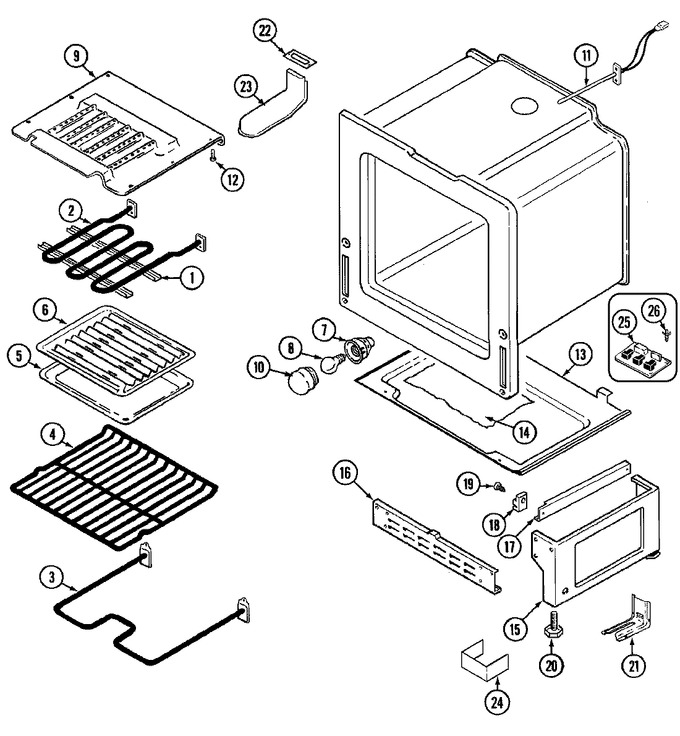

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11772394		Screw   (Replaces: 7101P345-60)	10		Immediately	$ 10.94
1	3807F387-45		Support, Broil Element	10	Appelez-nous	-
2	WPY04000059		Element, Broil   (Replaces: Y04000059)	10			$ 159.00
3	WP74003019		Element, Bake   (Replaces: Y04000058)	10		Immediately	$ 51.10
4	WPW10282492		Rack, Oven   (Replaces: 74001757)	10		Immediately	$ 65.15
5	Y3401F02019		Pan, Broil	10	Appelez-nous	-
6	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	16		Immediately	$ 12.62
7	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	10		Immediately	$ 66.10
7	74003125		Receptacle, Bulb	16	Appelez-nous	-
8	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
9	3601F237-47		Baffle, Broil	10	Appelez-nous	-
10	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	10		Immediately	$ 71.93
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	12001656		Sensor, Oven (long)   (Replaces: 74003095)	10		Immediately	$ 39.55
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	3804F112-51		Retainer, Insulation	10	Appelez-nous	-
14	8312P058-60		Foil, Insulation Retainer	10	Appelez-nous	-
15	74001705		Pedestal (sides)	10	Appelez-nous	-
15	74003003		Pedestal, Side	12	Appelez-nous	-
16	4020F001-80		Pedestal, Front/rear	10	Appelez-nous	-
16	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
17	3406F028-51		Runner, Drawer	10	Appelez-nous	-
18	74002312		Support, Drawer	10			$ 27.09
19	WPW10348409		Screw (8abx13/16-zn)   (Replaces: 74001449)	10		Immediately	$ 6.98
20	W11665456		Leg, Leveling   (Replaces: 74002557)	12		Immediately	$ 25.30
20	74001311		Leg, Leveling	10	Appelez-nous	-
21	WP3801F656-51		Bracket, Anti-tip   (Replaces: 74002311)	10		Immediately	$ 4.69
21	WP7101P485-60		Screw   (Replaces: 7101P352-60)	10			$ 26.33
22	7201P060-60		Gasket, Vent	10	Appelez-nous	-
23	74001674		Cover, Vent	10	Appelez-nous	-
23	4006W112-45		Box, Vent	10	Appelez-nous	-
24	4005F420-80		Cover, Leveling Leg	10	Appelez-nous	-
25	74001633		Board, Relay	10	Appelez-nous	-
25	3807F439-51		Support, Relay Board	10	Appelez-nous	-
26	8004P020-60		Support, Relay Board	10	Appelez-nous	-
26	8004P032-60		Support, Relay	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
