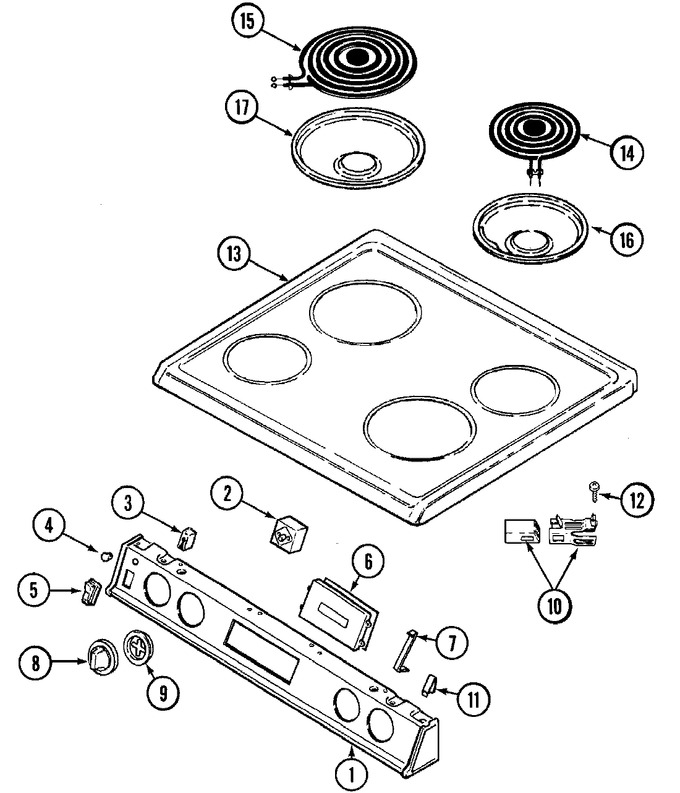

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74002643		Panel, Control (wht)	10	Appelez-nous	-
1	74002647		Trim, Shield Manifold Panel	10	Appelez-nous	-
2	WP7403P238-60		Switch, Infinite (sml Element)   (Replaces: 7403P238-60)	10		Immediately	$ 57.78
2	WP7403P239-60		Switch, Infinite (lrg Element)   (Replaces: 7403P239-60)	10		Immediately	$ 35.10
2	WP7101P309-60		Screw   (Replaces: 7101P309-60)	10		Immediately	$ 6.26
3	W10852510		Light, Indicator   (Replaces: 7407P102-60)	10			$ 106.11
4	W11690131		Lens, Indicator Light   (Replaces: 7730P012-60)	10			$ 6.73
5	7403P200-60		Switch, Rocker (wht)	10	Appelez-nous	-
6	74002645		Clock (wht)	10	Appelez-nous	-
7	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	10			$ 6.98
7	3801F349-51		Bracket, Clock	10	Appelez-nous	-
8	7731P081-60		Knob, Switch (wht)	10	Appelez-nous	-
9	7740P023-60		Bezel, Knob (wht)	10	Appelez-nous	-
10	12001676		Kit, Receptacle   (Replaces: 1430306K)	10		Immediately	$ 28.45
11	7112P087-60		Clip, Top Locking	10	Appelez-nous	-
12	WP74004005		Screw   (Replaces: 7118P013-60)	10			$ 6.95
13	74001248		Top Assy. (wht)	10	Appelez-nous	-
14	WPW10259868		Element, Surface (6``)   (Replaces: 74001776)	10		Immediately	$ 112.28
15	WP12001560		Element, Surface (8``)   (Replaces: 74001774)	10			$ 172.17
16	WPW10196406		Bowl, Drip (6``-chr)   (Replaces: 74001212)	10		Immediately	$ 12.05
17	WPW10196405		Bowl, Drip (8``-chr)   (Replaces: 74001213)	10		Immediately	$ 15.56
18	74001589		Harness, Wire Control/top	10	Appelez-nous	-
18	5170P228-60		Harness, Sensor & Lock	10	Appelez-nous	-
19	74002579		Manual, Insert Clock (frch)	10	Appelez-nous	-
20	16002081		Guide, Quick Ref - Norge	10	Appelez-nous	-
