SELECT A DIAGRAM

01 - Body

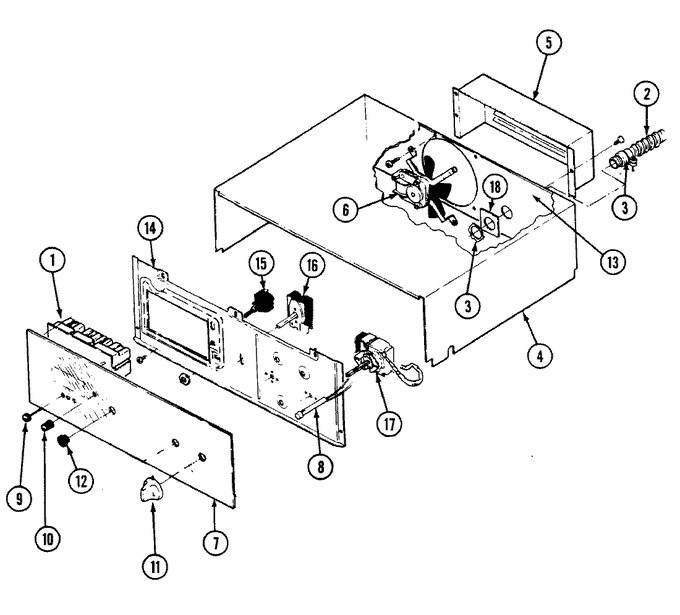

02 - Control Panel


03 - Door


04 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7601P197-60		Clock	03	Appelez-nous	-
2	7434P010-60		Tubing, Conduit (canada)	03	Appelez-nous	-
3	5150A051-60		Wires, Conduit	03	Appelez-nous	-
3	7417P003-60		Connector, Cable	03	Appelez-nous	-
4	4005F150-51		Cover, Wire	03	Appelez-nous	-
5	4005F262-51		Cover, Fan	03	Appelez-nous	-
6	7427P006-60		Fan Assembly	03	Appelez-nous	-
7	7912P079-60		Glass, Control Panel (white)	04	Appelez-nous	-
8	5700A236-60		Light, Indicator	03	Appelez-nous	-
9	7711P420-60		Knob, Clock (button-wht)	04	Appelez-nous	-
10	7711P419-60		Knob, Clock (wht)	04	Appelez-nous	-
10	8312P017-60		Shaft, Clock	03	Appelez-nous	-
11	7737P011-60		Knob, Switch (wht)	04	Appelez-nous	-
12	7214P023-60		Sleeve, Switch (wht)	04	Appelez-nous	-
13	3605F164-51		Plate, Conduit	03	Appelez-nous	-
14	3605F139-80		Support, Clock	03	Appelez-nous	-
15	7403P204-60		Switch, Push (wht)	04	Appelez-nous	-
16	7403P023-60		Switch, Selector	03	Appelez-nous	-
17	7404P039-60		Thermostat, Upper	03	Appelez-nous	-
18	7401P011-60		Block, Disconnect	03	Appelez-nous	-
18	5180A119-60		Harness, Wire	03	Appelez-nous	-
18	5180A118-60		Harness, Wire	03	Appelez-nous	-
18	7401P003-60		Block, Terminal----na	03	Appelez-nous	-
18	7401P006-60		Block, Disconnect	03	Appelez-nous	-
18	3605F131-51		Plate, Reinforcement	03	Appelez-nous	-
18	7401P013-60		Block, Disconnect	03	Appelez-nous	-
20	8112P038-60		Manual, Use & Care	03	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
