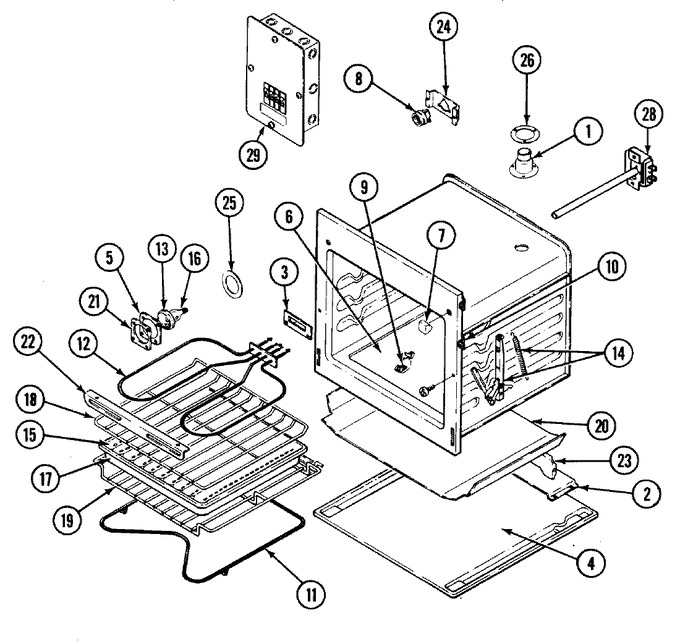

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door
04 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7505P018-60 | Catalyst Burner | 03 |
|
- | ||||
| 1 | 7101P287-60 | Screw, Metal Grounding | 03 |
|
$ 12.03 | ||||
| 2 | 3601F005-61 | Baffle, Base | 03 |
|
- | ||||
| 3 | 7201P003-60 | Gasket, Element | 03 |
|
- | ||||
| 4 | 4003F011-80 | Base, Wall Oven | 03 |
|
- | ||||
| 5 | 7201P015-60 | Gasket, Lamp Retainer | 03 |
|
- | ||||
| 6 | 2205F003-19 | Bottom, Oven | 03 |
|
- | ||||
| 7 | 8003P009-60 | Bumper, Door (square) | 03 |
|
- | ||||
| 8 | 7408P034-60 | Receptacle, Oven Light | 03 |
|
- | ||||
| 9 | 4005F011-35 | Cover, Cap Hole | 03 |
|
- | ||||
| 9 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 03 |
|
Immediately | $ 11.07 | |||
| 10 | 7112P020-60 | Clip, Oven Front | 03 |
|
- | ||||
| 11 | WPY04000066 | Element Bake (Replaces: Y04000047) | 03 |
|
Immediately | $ 70.53 | |||
| 11 | 7101P287-60 | Screw, Metal Grounding | 03 |
|
$ 12.03 | ||||
| 12 | 7101P287-60 | Screw, Metal Grounding | 03 |
|
$ 12.03 | ||||
| 12 | WPY04000048 | Element, Broil (Replaces: Y04000048) | 03 |
|
$ 160.58 | ||||
| 13 | 7902P057-60 | Glass, Lamp Guard | 03 |
|
- | ||||
| 14 | WP4159193 | Screw (Replaces: 7101P115-60) | 03 |
|
$ 4.29 | ||||
| 14 | 7106P037-60 | Hinge, Door | 03 |
|
- | ||||
| 15 | Y3413F01619 | Insert, Broil Pan | 03 |
|
- | ||||
| 16 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 03 |
|
Immediately | $ 1.98 | |||
| 16 | 4001W012-51 | Housing Lamp | 03 |
|
- | ||||
| 16 | 7002P094-60 | Insulation, Lamp Housing | 03 |
|
- | ||||
| 17 | Y3401F02019 | Pan, Broil | 03 |
|
- | ||||
| 18 | 7801P005-60 | Rack | 03 |
|
- | ||||
| 19 | 7801P007-60 | Rack, Offset | 03 |
|
- | ||||
| 20 | 3804F104-51 | Retainer, Bottom Insulation | 03 |
|
- | ||||
| 21 | 3804F011-45 | Retainer | 03 |
|
- | ||||
| 22 | 3807F176-19 | Support, Broil Element | 03 |
|
- | ||||
| 23 | 3807F137-80 | Support | 03 |
|
- | ||||
| 24 | 3801F024-51 | Bracket | 03 |
|
- | ||||
| 25 | 7201P014-60 | Gasket, Housing | 03 |
|
- | ||||
| 26 | 7201P016-60 | Gasket | 03 |
|
- | ||||
| 27 | Y7101P25460 | Leg, Leveling | 03 |
|
- | ||||
| 28 | 3605F166-51 | Plate, Mtg. (redundant T-stat) | 03 |
|
- | ||||
| 28 | 7404P057-60 | Thermostat, Redundant | 03 |
|
- | ||||
| 29 | 8028P004-60 | Box, Breaker | 03 |
|
- |
