SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


09 - Shelves


11 - System


13 - Ice Maker

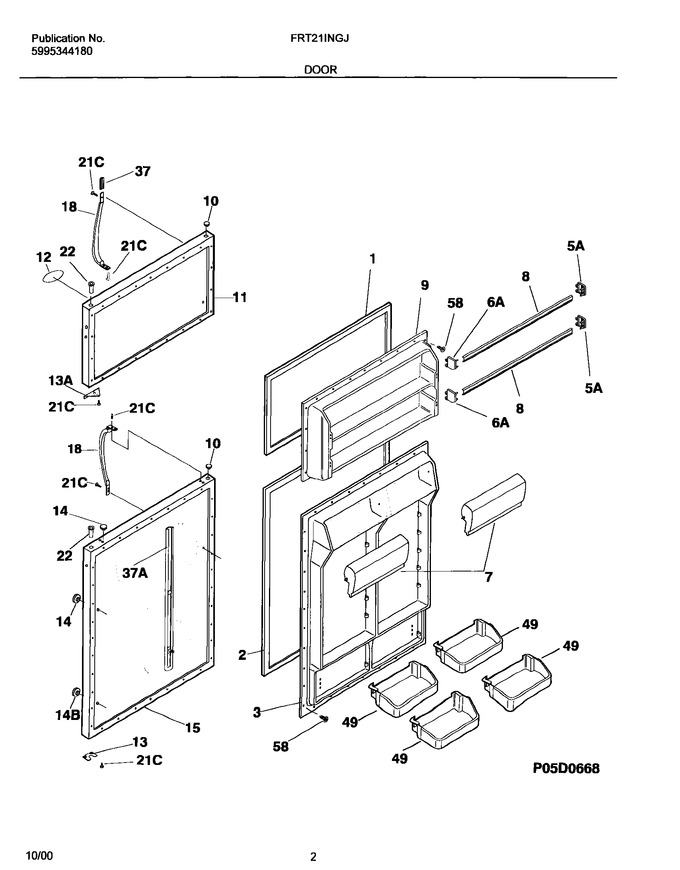

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	218894001		Panel-inner Door,refr		Appelez-nous	-
7	5303284478		Door-dairy				$ 179.92
8	215474053		Rack-door		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5304413166		Plug-button,bisque ,hinge Brg Hole		Appelez-nous	-
11	5303918143		Panel-ext Frzr Door,bisque ,w/insulation		Appelez-nous	-
12	215008628		Label-nameplate,bisque		Appelez-nous	-
12	218364007		Frame-nameplate,bisque ,12x		Appelez-nous	-
12	215518000		Magnet-nameplate		Appelez-nous	-
12	218156542		Nameplate Assy,bisque ,with Magnet		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
14	218915704		Plug-button,bisque		Appelez-nous	-
15	5303918144		Panel-ext Refr Door,bisque ,w/insulation		Appelez-nous	-
18	218668004		Handle-door,bisque				$ 83.79
22	218519300		Bearing-hinge				$ 14.60
37	218811630		Trim-handle,bisque ,upper		Appelez-nous	-
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
13A	218249004		Door Stop,bisque ,frzr Section		Appelez-nous	-
14B	215352219		Plug-button,bisque ,handle Mtg		Appelez-nous	-
21C	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
37A	218676003		Band-decorative, Gold				$ 47.11
37A	218906701		Lock-handle Trim,stick-on				$ 67.86
37A	218811629		Trim-handle,black ,lower		Appelez-nous	-
5A	5303323480		Support-door Rack, White, Rh				$ 14.18
6A	5303323481		Support-door Rack, White, Lh			Immediately	$ 14.18
F1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
