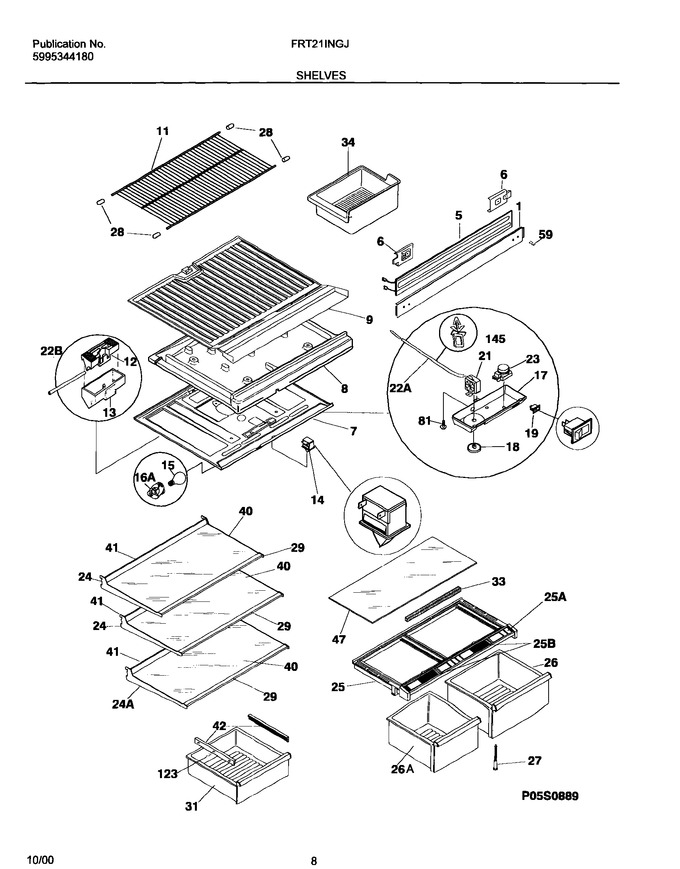

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651903		Mullion,bisque		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218866101		Top Panel-refr		Appelez-nous	-
8	218909706		Divider,styrofoam ,w/foil Tape		Appelez-nous	-
9	218865900		Bottom Panel-frzr				$ 43.29
11	5303299664		Spacer-shelf				$ 24.10
11	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
17	5304414816		Control Box		Appelez-nous	-
17	5308016567		Nut-anchor		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
21	5304404821		Control-temperature   (Replaces: 5304403736)			Immediately	$ 164.57
21	5303001260		Screw				$ 6.73
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24	215919117		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303206538		Cover-crisper Pan		Appelez-nous	-
26	218884502		Pan-crisper,14.35`` Wide ,rh		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
29	215919405		Trim-glass Shelf,26.80`` ,front		Appelez-nous	-
31	218884402		Pan-meat				$ 167.13
33	5303200329		Gasket-pan Cover, 13.25``, Rh		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
40	218498176		Glass-shelf,26.76`` X 14.57``		Appelez-nous	-
41	215919805		Trim-shelf, 26.80``, Rear		Appelez-nous	-
42	218971302		Hanger-meat Pan,rh				$ 73.71
42	218971202		Hanger-meat Pan,lh				$ 60.96
47	218498177		Insert-pan Cover,glass		Appelez-nous	-
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo   (Replaces: 218188000)				$ 8.34
81	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
22B	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
24A	215919176		Frame-pan Mtg Shelf,cantilever ,full Width,w/hanger Tabs		Appelez-nous	-
25A	5304411657		Trim-crisper Cover				$ 49.56
25B	5303301490		Control-humidity				$ 54.29
26A	218884611		Pan-crisper,11.35`` Wide ,lh				$ 181.54
F14	5309918806		Switch-light/lamp			Immediately	$ 21.97
F15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
F16A	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
F19	5303286905		Switch-energy Saver, Rocker				$ 27.08
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
F5	218781002		Heater-mullion		Appelez-nous	-
NI	218878600		Wiring Harness,control/divider		Appelez-nous	-
NI	3205266		Protector-edge, Wiring Harness				$ 80.09

    View Diagram in Separate Window       Print Part List
