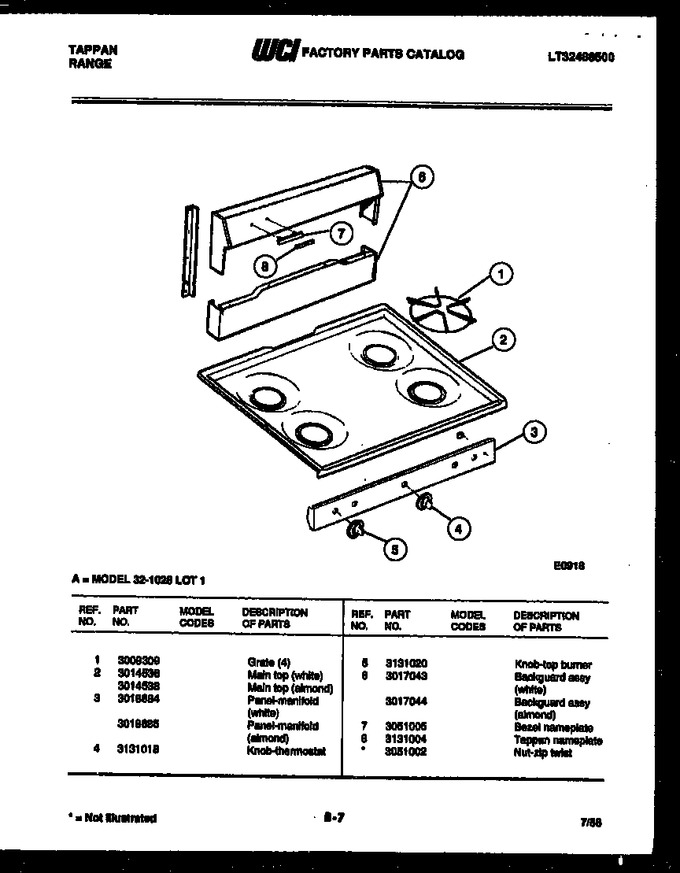

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3009309 | Grate (4) |
|
- | |||||
| 2 | 3014538 | Main Top-almond |
|
- | |||||
| 3 | 3018685 | Panel-manifold (almond) |
|
- | |||||
| 4 | 3131018 | Knob-thermostat |
|
- | |||||
| 5 | 3131020 | Knob-top Burner |
|
- | |||||
| 6 | 3017044 | Backguard Assy (almond) |
|
- | |||||
| 7 | 3051005 | Bezel-nameplate |
|
- | |||||
| 8 | 3131004 | Tappan Nameplate |
|
- | |||||
| *16351 | 3051002 | Nut-zip Twist |
|
- |
