02 - Cooktop Parts


03 - Broiler Drawer Parts


04 - Door Parts


05 - Burner Parts


06 - Body Parts

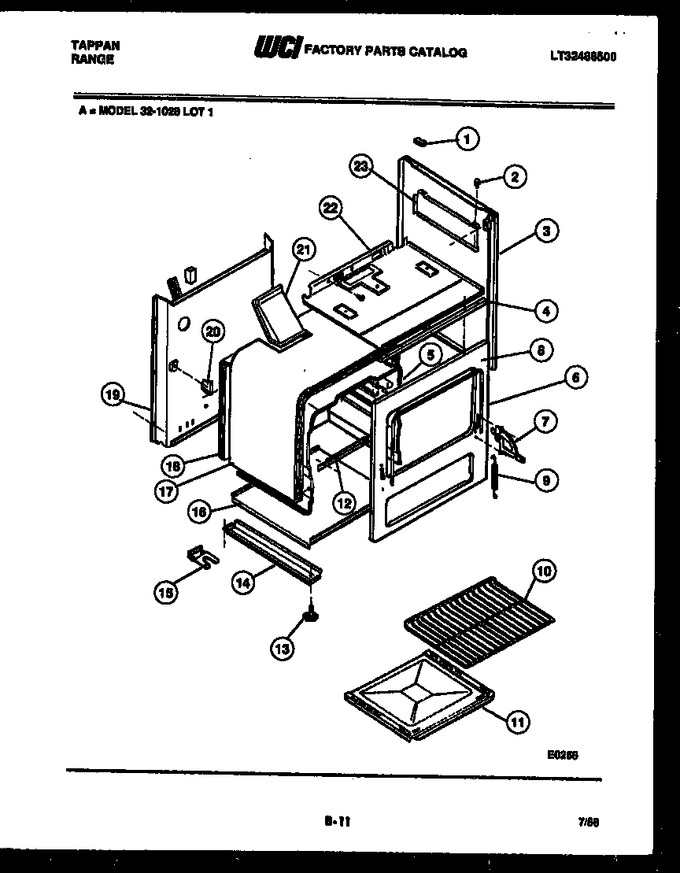

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051062		Bodyside-l&r (almond)		Appelez-nous	-
4	3131811		Support Control Pnl		Appelez-nous	-
5	3017167		Oven Liner-back		Appelez-nous	-
5	3131032		Oven Liner-side Rh		Appelez-nous	-
5	3131033		Oven Liner-side Lh		Appelez-nous	-
5	3017166		Oven Liner-top		Appelez-nous	-
6	3017048		Front Frame		Appelez-nous	-
7	3051078		Hinge-door Rh		Appelez-nous	-
7	3051077		Hinge-door Lh		Appelez-nous	-
8	3009427		Seal-oven Door		Appelez-nous	-
9	3009435		Spring-hinge L&r (2)		Appelez-nous	-
10	3015714		Rack - Oven (2)		Appelez-nous	-
11	3017168		Oven-bottom		Appelez-nous	-
12	3131038		Support-oven Bottom		Appelez-nous	-
13	3051080		Leveling Leg		Appelez-nous	-
14	3051081		Rail-base L & R (2)		Appelez-nous	-
15	3131041		Bracket-installation		Appelez-nous	-
16	3011645		Main Bottom		Appelez-nous	-
17	3017171		Insulation - Wrap		Appelez-nous	-
18	3017172		Insulation - Back		Appelez-nous	-
19	3013340		Main Back		Appelez-nous	-
20	3051096		Support,oven Rear		Appelez-nous	-
21	3017173		Vent Box		Appelez-nous	-
22	3017174		Burner-box		Appelez-nous	-
23	3131053		Shield-heat Burner Box Rh		Appelez-nous	-
23	3131054		Shield-heat Burner Box Lh		Appelez-nous	-
*16355	3131791		Clip-bodyside Corner				$ 19.01
