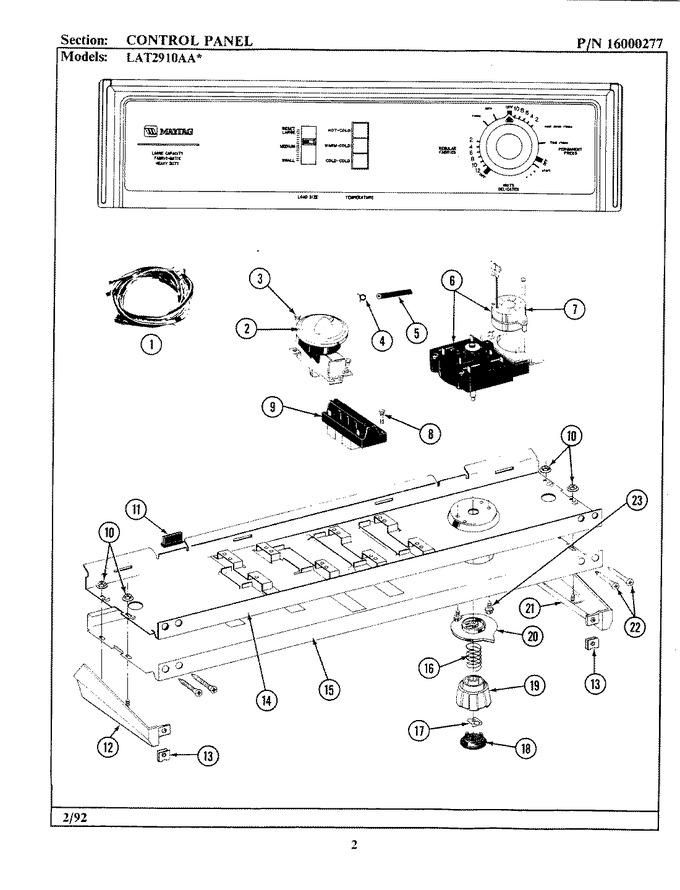

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	207383		Wire Harness		Appelez-nous	-
2	207362		Infinite Level Pressure Switch		Appelez-nous	-
3	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)				$ 6.75
4	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)			Immediately	$ 7.56
5	WP22001619		Air Dome And Tube   (Replaces: 212942)				$ 75.73
6	207379		Timer				$ 195.31
7	205033		Timer Motor 120-60		Appelez-nous	-
8	WP67006908		Screw-temp. Switch To Panel   (Replaces: 213117)			Immediately	$ 7.16
9	207368		Temp Control Switch - 3 Button		Appelez-nous	-
10	214872		Palnut, End Cap		Appelez-nous	-
11	214897		Pad, Control Panel		Appelez-nous	-
12	207215		End Cap Lh		Appelez-nous	-
13	214894		Fastener, End Cap		Appelez-nous	-
14	214809		Back Up Plate		Appelez-nous	-
15	208081		Panel, Control		Appelez-nous	-
16	211065		Spring, Timer Knob				$ 5.70
17	211605		Retainer, Timer Knob		Appelez-nous	-
18	215821		Cap, Knob		Appelez-nous	-
19	215828		Knob, Timer (blk)				$ 11.97
20	215827		Timer Dial Skirt		Appelez-nous	-
21	207216		End Cap Rh		Appelez-nous	-
22	210932		Screw, No.8 X 9/16 Ctsk		Appelez-nous	-
23	WP3400014		Screw-timer To Control Pane   (Replaces: 213966)				$ 6.98
